1300 Series Fire Hose Cabinet
1300 Series Fire Hose Cabinet

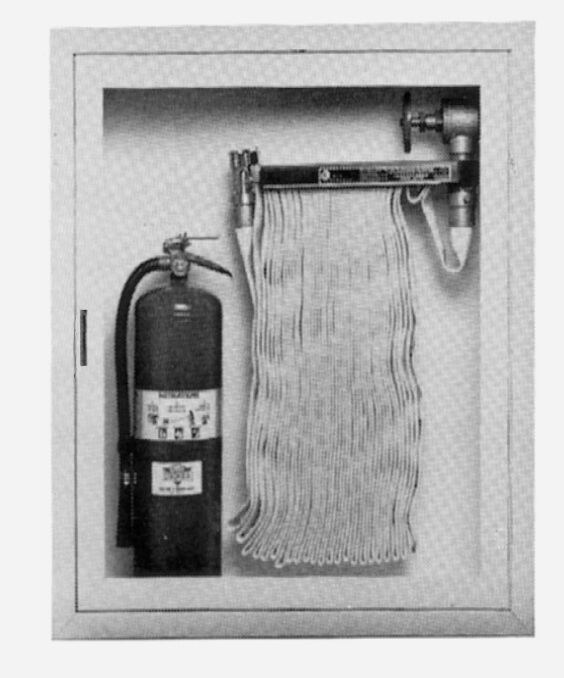

1300 Series cabinets will accommodate a 1-1/2" or 2-1/2" fire hose rack assembly and a portable fire extinguisher.
( Note: 4420 and 4206 extinguishers will not fit.)
Standard Material:
20 gauge cold rolled steel door, frame, and tub with a white powder-coat suitable as a finish or primer coat. Flush doors with 5/8" door stop are attached by a 180° continuous hinge and equipped with a zinc-plated pull handle and roller catch. Surface mounted models have square edge trim. Trimless models are designed with a 5/8" recessed flange for drywall installation, or 3/4" recessed flange for plaster or stucco wall. 1-3/4" face trim on frame and 1-1/4" trim on doors with glazing.
Hardware: Includes Model 1834 pull handle with (2) screws, roller catch with (2) screws, glass clips with set screws.
Knockouts: Refer to catalog page for knockout locations on trimless, recessed, and semi-recessed models. Knockout locations must be specified on surface mounted cabinets. Knockouts are not available on fire-rated or stainless steel tubs.
Available Models:
Refer to catalog page for capacity information.
1300 - Recessed 3/8" flat trim, Inside Box: 32-3/4" x 34-3/4" x 8"
1301 - Semi-recessed 1-1/4" square edge trim, Inside Box: 32-3/4" x 34-3/4" x 8"
1302 - Semi-recessed 2-1/2" rolled edge trim, Inside Box: 32-3/4" x 34-3/4" x 8"
1306 - Trimless, Inside Box: 32-3/4" x 34-3/4" x 8"
1308 - Surface mount, Inside Box: 35-15/16" x 37-15/16" x 8-1/2"
1310 - Recessed 3/8" flat trim, Inside Box: 32-3/4" x 38-3/4" x 8"
1311 - Semi-recessed 1-1/4" square edge trim, Inside Box: 32-3/4" x 38-3/4" x 8"
1312 - Semi-recessed 2-1/2" rolled edge trim, Inside Box: 32-3/4" x 38-3/4" x 8"
1316 - Trimless, Inside Box: 32-3/4" x 38-3/4" x 8"
1318 - Surface mount, Inside Box: 35-15/16" x 41-15/16" x 8-1/2"
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Hose Cabinet - Fire Hose Rack Assembly & Fire Extinguisher [1300, 1301, 1302, 1306, 1308, 1310, 1311, 1312,1316, 1318] | 0 | 315 KB | ||
| | Cabinet Accessories & Options | 0 | 346 KB | ||
| | How to Select Cabinets Guide | 0 | 1 MB |
Details
Door Styles:
-AFull panel with clear Plexiglas (acrylic)-ATFull panel with clear tempered glass-ASFull panel with laminated safety glass-AWFull panel clear wire glass with safety film-DHorizontal duo panel with clear Plexiglas (acrylic)-DTHorizontal duo panel with clear tempered glass-DSHorizontal duo panel with laminated safety glass-DWHorizontal duo panel with clear wire glass with safety film-DVVertical duo panel with clear Plexiglas (acrylic)-DVTVertical duo panel with clear tempered glass-DVSVertical duo panel with laminated safety glass-DVWVertical duo panel with clear wire glass with safety film-ESolid
Optional Door & Frame Materials:
-AL18 gauge No. 180 clear anodized aluminum door and frame. Surface mounted models have square edge trim and clear anodized aluminum tubs. Trimless models have a tub constructed of 20 gauge cold rolled steel with a silver powder-coated finish. Rolled edge aluminum trim is formed of extrusions.
-SS20 gauge type 304 No. 4 stainless steel door and frame. Surface mounted models have rolled edge trim and stainless steel tubs with a galvanized back panel. Trimless models have a tub constructed of 20 gauge cold rolled steel with a silver powder-coated finish.
Optional Fire-rated Tub:
-FRFire-Rated 20 gauge steel tub with white powder-coat, insulated with FirespanTM 90 by Thermafiber®, a UL-Listed, inorganic, mineral wool fiber insulation with high recycled content, attached to the exterior of the tub and forms a flange to cover cut edges of wallboard material. These cabinets have been tested by Underwriters Laboratories® to maintain one and two-hour fire-rated wall barriers in accordance with ANSI/UL-1479, ASTM E814 and ULC/Can S115 for membrane and penetration firestops. Installation instructions must be strictly adhered to in order to obtain the fire rating. This option is not available for surface mounted models.
Additional Options & Accessories:
Refer to Downloads or Catalog for additional options and accessories.
