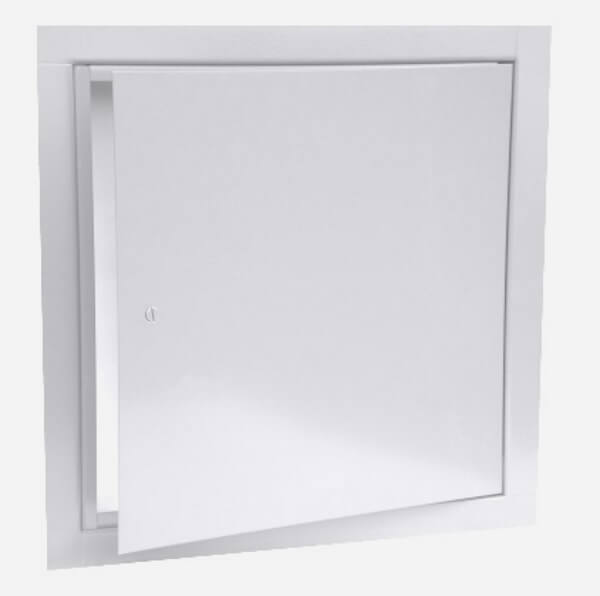

WMT SERIES - MULTI-PURPOSE FLUSH STEEL ACCESS PANELS

WMT Series Access Panels for Masonry, Tile, and Wallboard are all-purpose 16 gauge steel access doors that afford fast and convenient access for inspection or service to vital components of plumbing, heating, air conditioning, and electrical systems. The 1" frame flange adds rigidity and conceals the rough wall openings. The concealed hinged door mounts to the frame and swings open for ease in servicing and results in a door always closing square in place.

Standard Material:

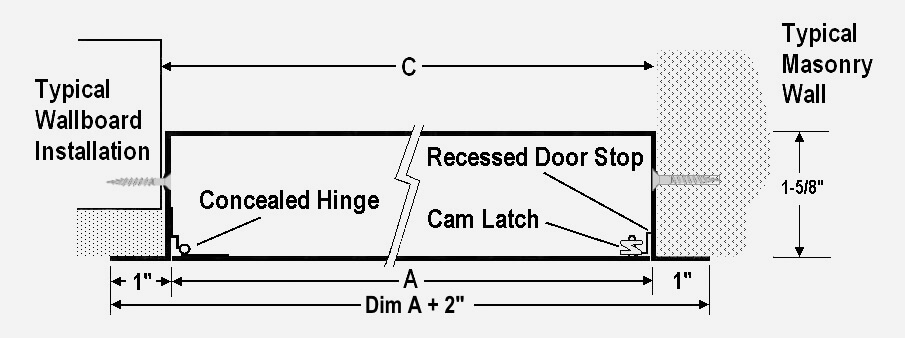

Frame: 16 gauge steel with a 1" wall flange. Door: 16 gauge steel access door mounted with a 90° continuous, concealed hinge. Finish: White powder coat paint. Lock: Flush screwdriver-operated steel cam (C). Sizes: Minimum 6” x 6”, maximum 48” x 48”. Custom Sizes: Available in 1/4” Increments Only—For Example 16-1/4”, 16-1/2” or 16-3/4

Available Models:

WMT1850 - 6" x 6" WMT1851 - 8" x 8" WMT1852 - 8" x 12" WMT1853 - 10" x 10" WMT1854 - 12" x 12" WMT1855 - 12" x 16" WMT1856 - 12" x 18" WMT1857 - 12" x 24" WMT1858 - 14" x 14" WMT1859 - 16" x 16" WMT1860 - 16" x 20" WMT1861 - 18" x 18" WMT1862 - 20" x 24" WMT1863 - 20" x 30" WMT1864 - 22" x 30" WMT1865 - 24" x 24" WMT1866 - 24" x 30" WMT1867 - 24" x 36" WMT1868 - 30" x 30" WMT1869 - 36" x 36"
