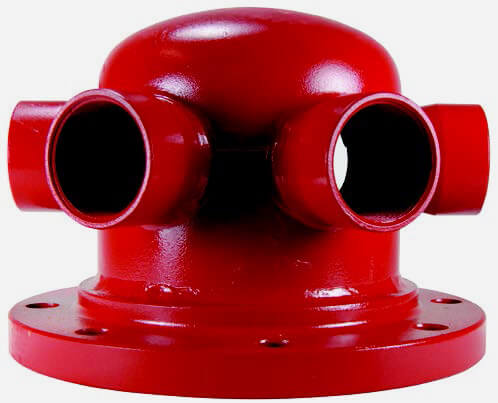

HV SERIES ROUND STYLE EXPOSED TEST CONNECTION
Model HVF, HVG
Model HVF, HVG
HV SERIES ROUND STYLE EXPOSED TEST CONNECTION
Provides means to test a fire pump flow rate. The number of outlets is based upon the rated G.P.M.
of the fire pump. Each individual outlet is capable of flowing 250 G.P.M. minimum discharge and
controlled by a hose valve.
Standard Features:
- 3”, 4”, 6”, 8”, 10” grooved or flanged (class 150) inlet
- 2.5” female NPT outlets
- Steel construction with red powder coat
Optional Features:
- Galvanized steel
- Stainless steel
- Threaded NPT inlet
- 3” female NPT outlets
