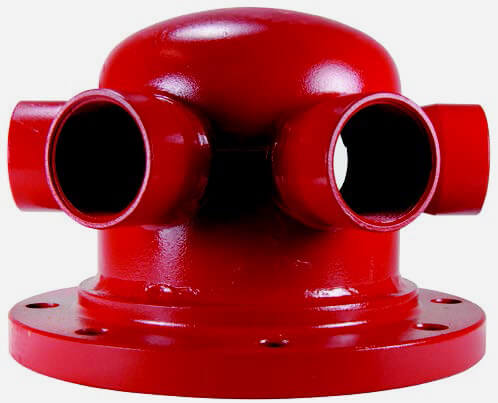

Round Style Exposed Pump Test Connection

Provides means to test a fire pump flow rate. The number of outlets is based on the fire pump's rated GPM. Each outlet can flow a minimum of 250 gallons (946.35 liters) per minute and is controlled by a hose valve.

Standard Features:

• Available in 3" (76 mm), 4" (102 mm), 6" (152 mm), 8" (203 mm), 10" (254 mm) inlet sizes
• Available with Groove Inlet or Flanged Class 150 Inlet
• 2.5" female NPT outlets
• Steel construction with red powder coat

Optional Features:

• Galvanized steel
• Stainless steel
• Threaded NPT inlet
• 3" female NPT outlets

Available Models

6835G, 6835F
Refer to the catalog page and/or "Product Models" Section below for more information.
