COMMERCIAL RISER PACK
Model 8000
Model 8000
COMMERCIAL RISER PACK

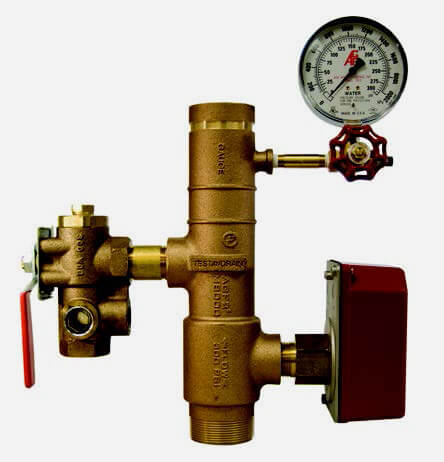

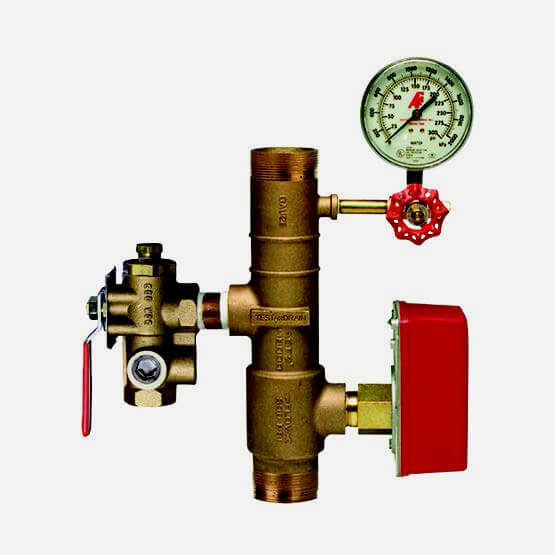

Pre-Assembled Commercial TESTanDRAIN® RiserPACK
Application: A pre-packaged economical riser assembly designed for NFPA 13 wet fire sprinkler systems.
Features:
- Bronze or Schedule 40 Steel Riser
- 1” NPT or Saddle Mount Water Flow Alarm Switch w/ Retard
- Model 7500 3½” Pressure Gauge with Model 7600¼” 3-Way Globe Valve
- Model 2500 TESTanDRAIN® Valve w/ Test Orifice
- Horizontal or Vertical Installation
- Made in the USA
Pressure rating: 300 PSI
Available sizes: 1¼", 1½", 2", 2½”, 3", 4", 6"
- 1¼", 1½", and 2" Models are cast bronze with male threaded, grooved, or threaded x grooved ends

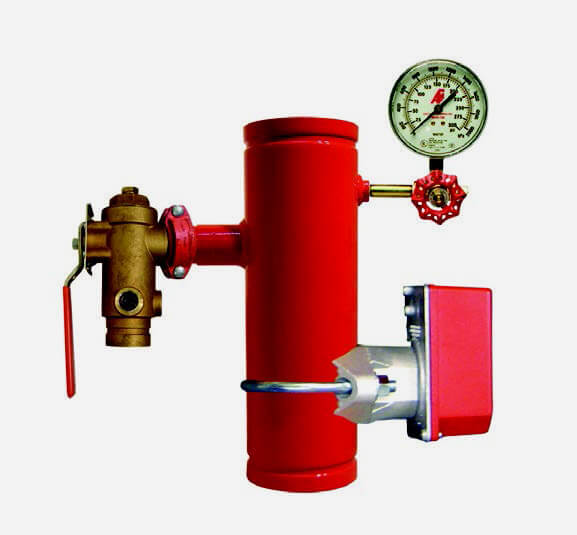

- 2½", 3", 4", and 6" models are Schedule 40 steel with 3mil red powder coated finish and grooved ends
- 1¼", 1½", and 2" models feature a 1" FNPT Model 2500 with available orifice sizes of 3⁄8" to 5⁄8" (ELO)
- 2½" and 3" models feature a 1¼" FNPT Model 2500 with available orifice sizes of 3⁄8" to ¾" (ESFR)
- 4" and 6" models feature a 2" grooved Model 2500 with available orifice sizes of 3⁄8" to K-25
Approvals:
- UL and ULC Listed
