Galvanized Auxiliary Drain in Cabinet

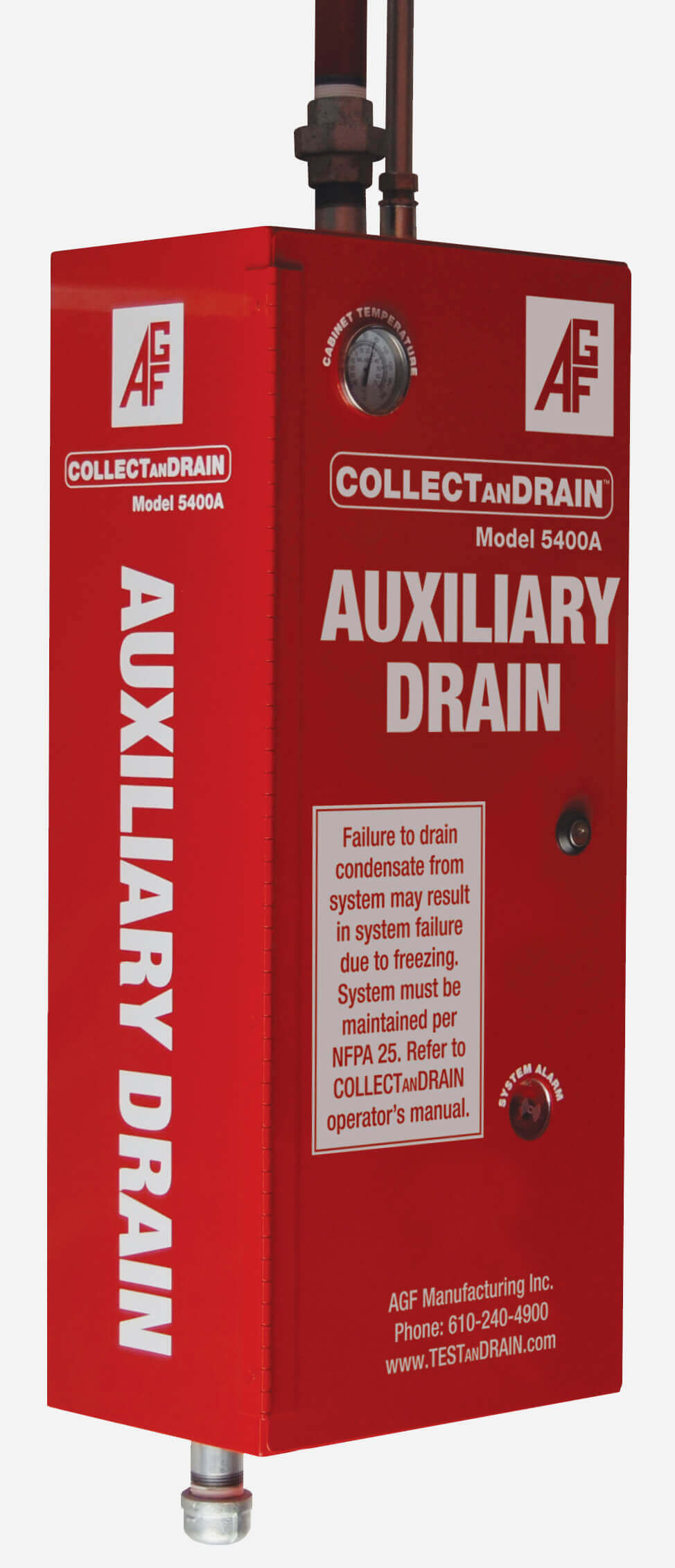

COLLECTanDRAIN® Model 5400A Galvanized Auxiliary Drain in Cabinet

Application: Provides a temperature-controlled environment to prevent costly system failures due to freezing of the condensation collectors along with localized and panel notification of required attention. The COLLECTanDRAIN® Family of products are auxiliary drains (low-point drains, drum drips, condensation collection assemblies) available in several configurations to meet and exceed NFPA 13 and NFPA 25 requirements addressing drainage in dry and pre-action sprinkler systems.

Features:

• Easily mounted lockable steel insulated and heated steel cabinet finished in a highly visible red powder coat and includes appropriate signage adhering to NFPA guidelines.
• Equipped with a temperature-sensitive internal heating element to prevent excess condensation in the drum drip from freezing.
• Includes a float switch that activates an audible alarm and visual signal to notify when the auxiliary drain has reached capacity and the drum drip requires draining.
• Can be wired to the fire panel or BMS
• Integral TEST button allows for system testing and the externally mounted thermometer allows for easy monitoring of temperature conditions inside the cabinet
• Four mounting tabs for easy attachment to structure walls, columns, or I-Beams.

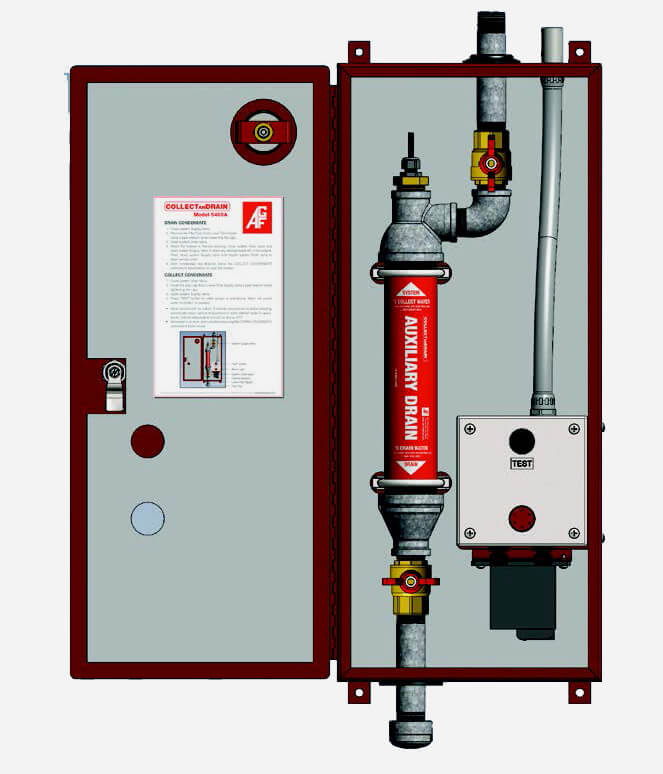

• Fully assembled and ready to be attached to dry pipe systems using galvanized piping components and 1” brass quarter-turn ball valves with chrome-plated brass balls.
• Made in the USA

Available Models:

5400A Galvanized Auxiliary Drain in Cabinet

5400B Black Steel Auxiliary Drain in Cabinet

5400H Cabinet with Hot Operation Trouble Monitor

5400D Cabinet with System Trouble Remote Dialer
