Test and Drain Valve With Pressure Relief (No PRV Trim)

Sectional Floor Control Test and Drain Valve for Systems Requiring Pressure Relief Valve

Application:Provides the test and express drain functions for wet fire sprinkler systems on multi-story installations requiring pressure relief.

Features:

• Compact, Single-Handle Ball Valve
• Tamper-Resistant Test Orifice and Sight Glasses
• Relieves Excess System Pressure caused by Surges or Temperature Changes
• Shipped with Relief Valve and Bypass Drain Ports Plugged to Expedite Pressure Testing
• Complies with NFPA 13 and NFPA 13R Requirements.
• Model 7000 Pressure Relief Valve (UL/FM) features a flushing handle and a 175 PSI factory rating (other pressure ratings available)

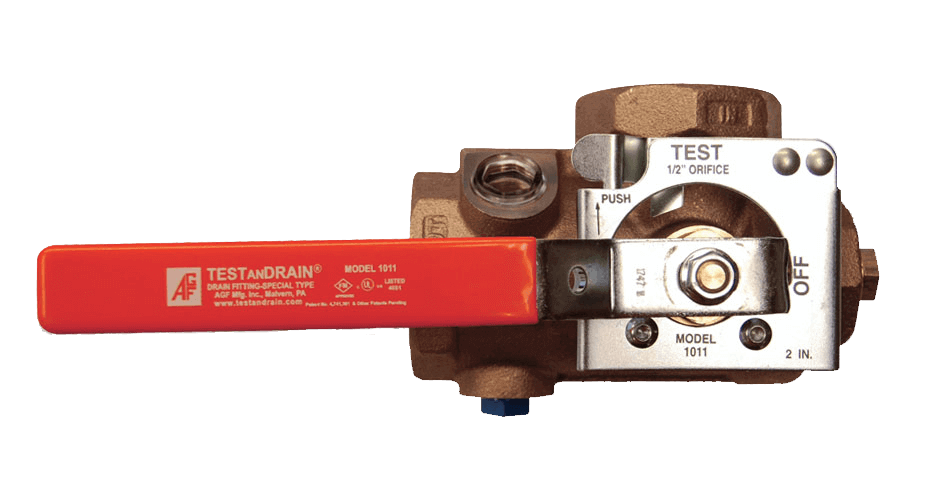

• Model 1011 excludes Model 7000 Pressure Relief Valve and drain pipe
• Made in the USA

Maximum working pressure: 300 PSI

Available sizes:¾", 1", 1¼", 1½", 2" (BSPT available)

Orifice sizes:3/8 " (2.8K), 7⁄16" (4.2K), ½" (5.6K), 17⁄32" (8.0K), 5⁄8" (11.2K, ELO), ¾" (14.0K, ESFR), and K25

Optional:

• Locking Kit Available
• Repair kits are available for all TESTanDRAIN® valves. Kit includes: Adapter Gasket (1), Ball (1), Valve Seats (2), Stem Packing (1), and Stem Washer (1). Valve and orifice size must be specified when ordering.

Approvals:

• UL and ULC Listed (EX4019)
• FM Approved
• NYC-BSA No. 720-87-SM
