ANGLE FIRE DEPT VALVE RATED 300 LBS

Model 5030, 5035

Model 5030, 5035

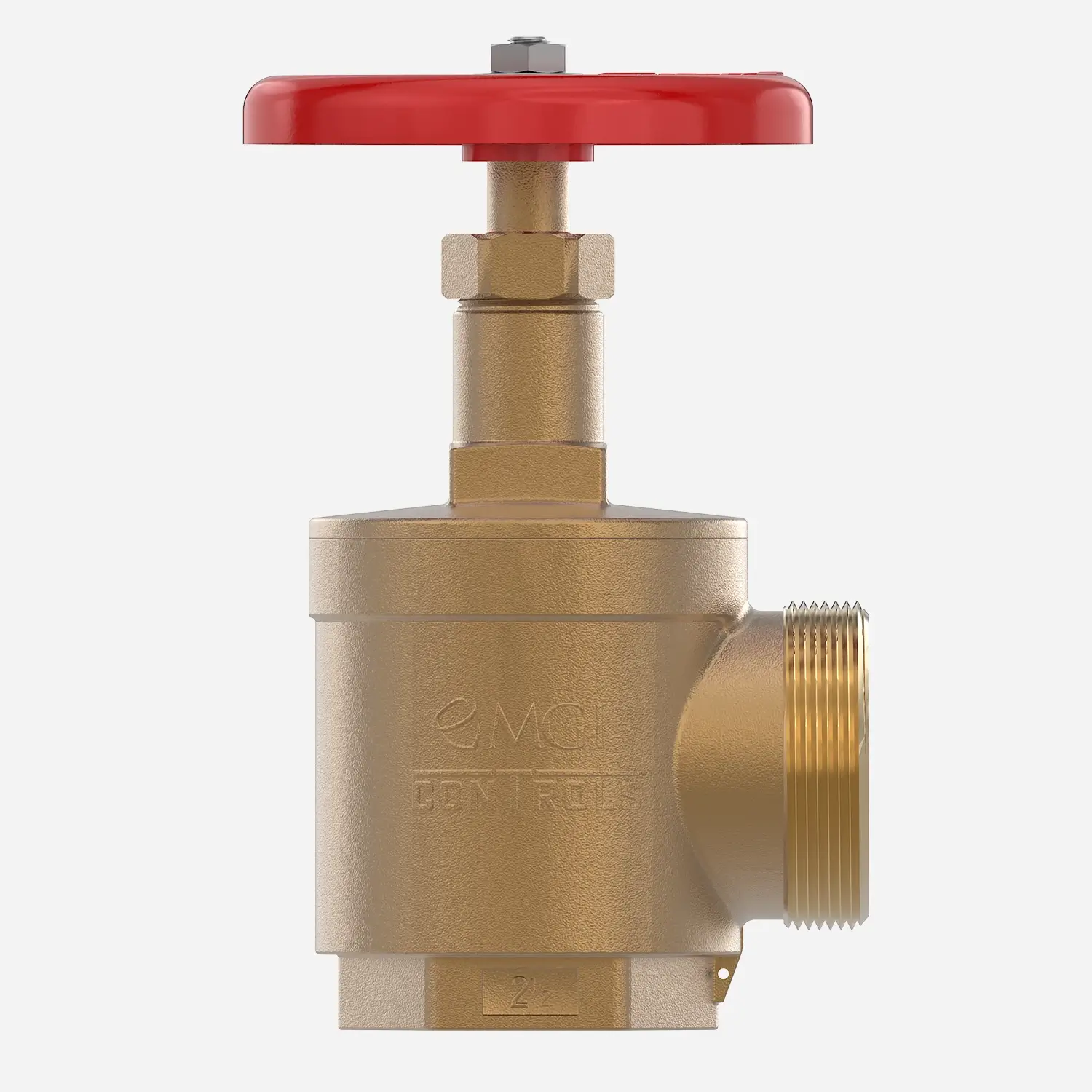

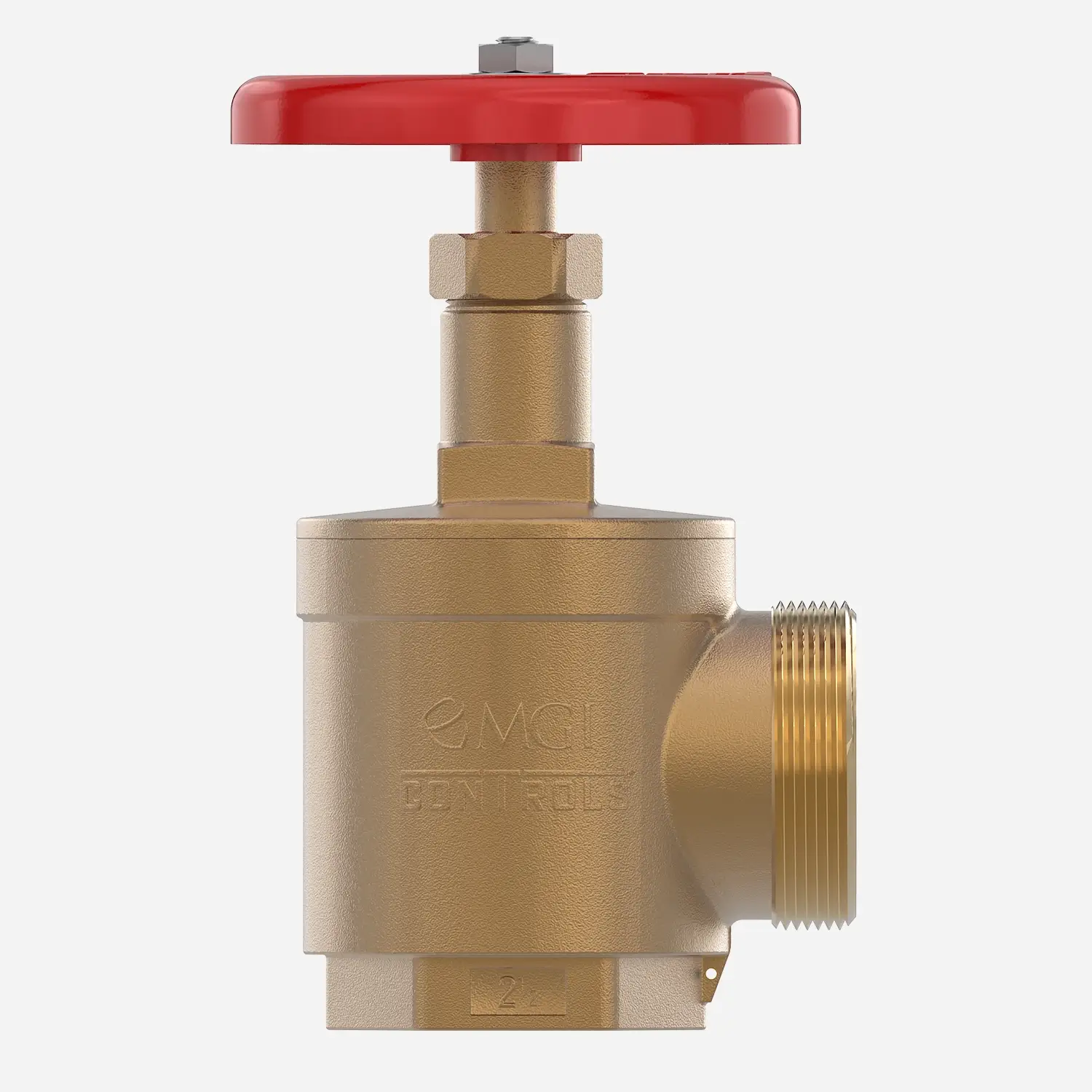

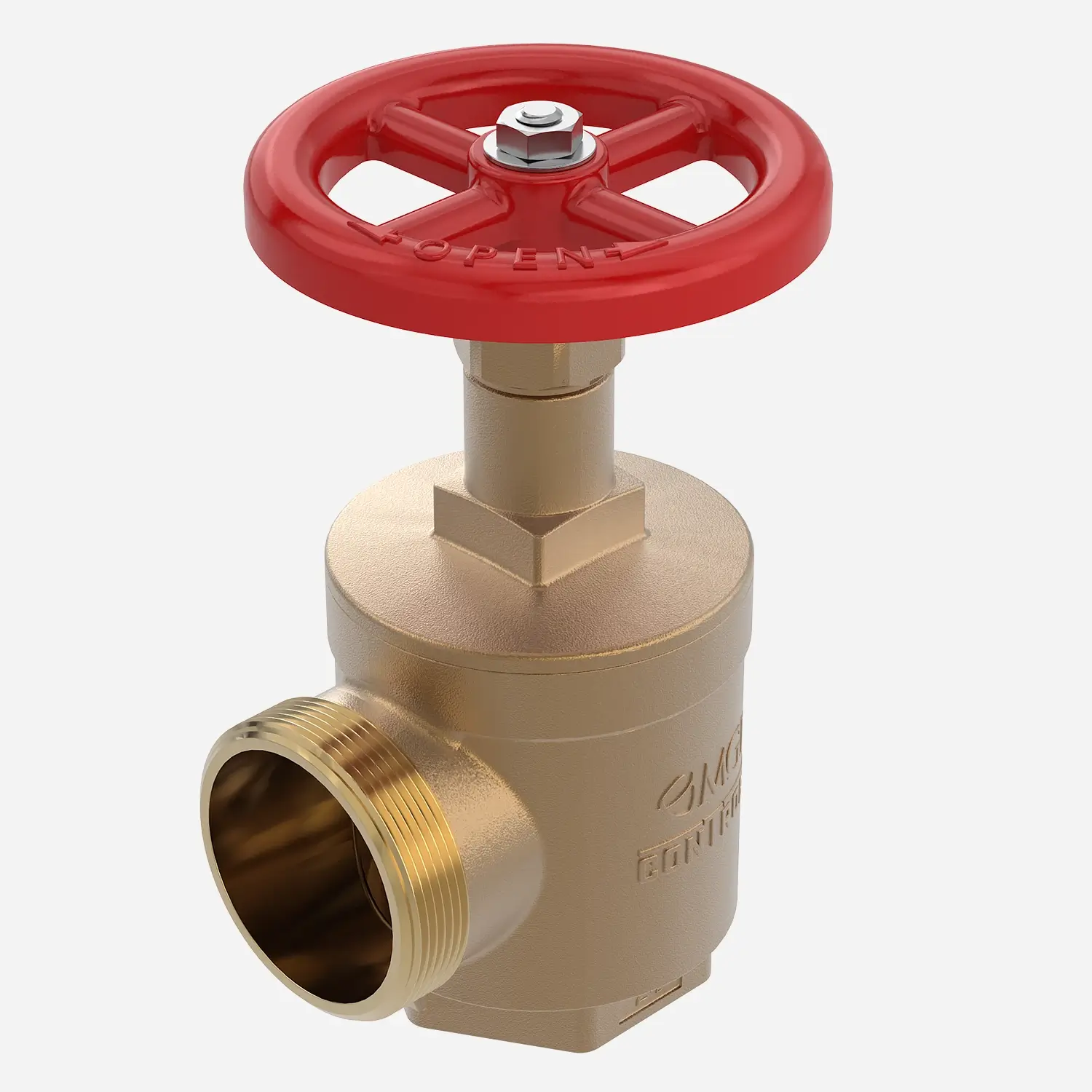

5030 and 5035 Valves are for Fire Department Applications. These are both angle valves rated for 300 lbs. of pressure.

The valve body is fabricated from cast brass and features a female NPT inlet and a male threaded outlet. The valve features a wheel handle.

• U/L Listed
• NYC (BSA/MEA) Approved

5030, 5035
Refer to the catalog page and/or "Product Models" Section below for more information.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Catalog Sheets	5010-5045 (CATALOG PAGE)	Hose Valves (Angle) - 300 lbs. Rated	131 KB
Miscellaneous	Friction Loss for 5035,5045 - 5030,5040	5000 Series Hose Valves Friction Loss Chart	204 KB
Miscellaneous	Croker Standard and Special Thread Specs	Hose Thread Specifications	104 KB
Literature/Brochures	MGI Controls Fire Valve Brochure (pdf)	Croker® MGI ConTrols® Pressure Reducing Valves [5410, 5000-ACV Series, 5035, 5410, 5420-5428, 5430-5438, 5450, 5455, 5470, 5475, 5480, 5490] Document# L1001693	1 MB

Can't find what you are looking for? Get in touch

5030 | 1-1/2" female NPT inlet x 1-1/2" male threaded outlet

5035 | 2-1/2" female NPT inlet x 2-1/2" male threaded outlet

Option Finishes
PB | Polished Brass
RC | Rough Chrome Plated
PC | Polished Chrome Plated
