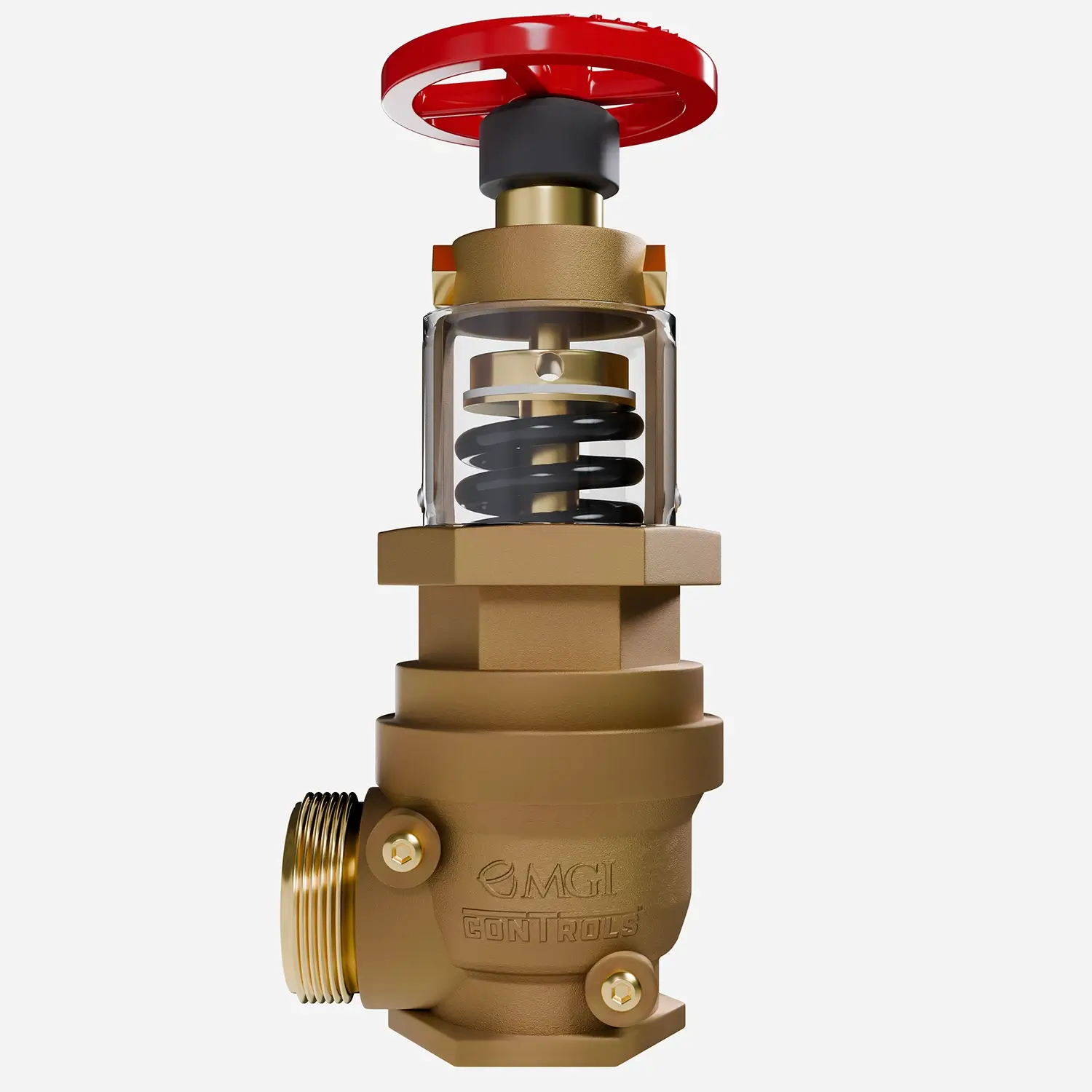

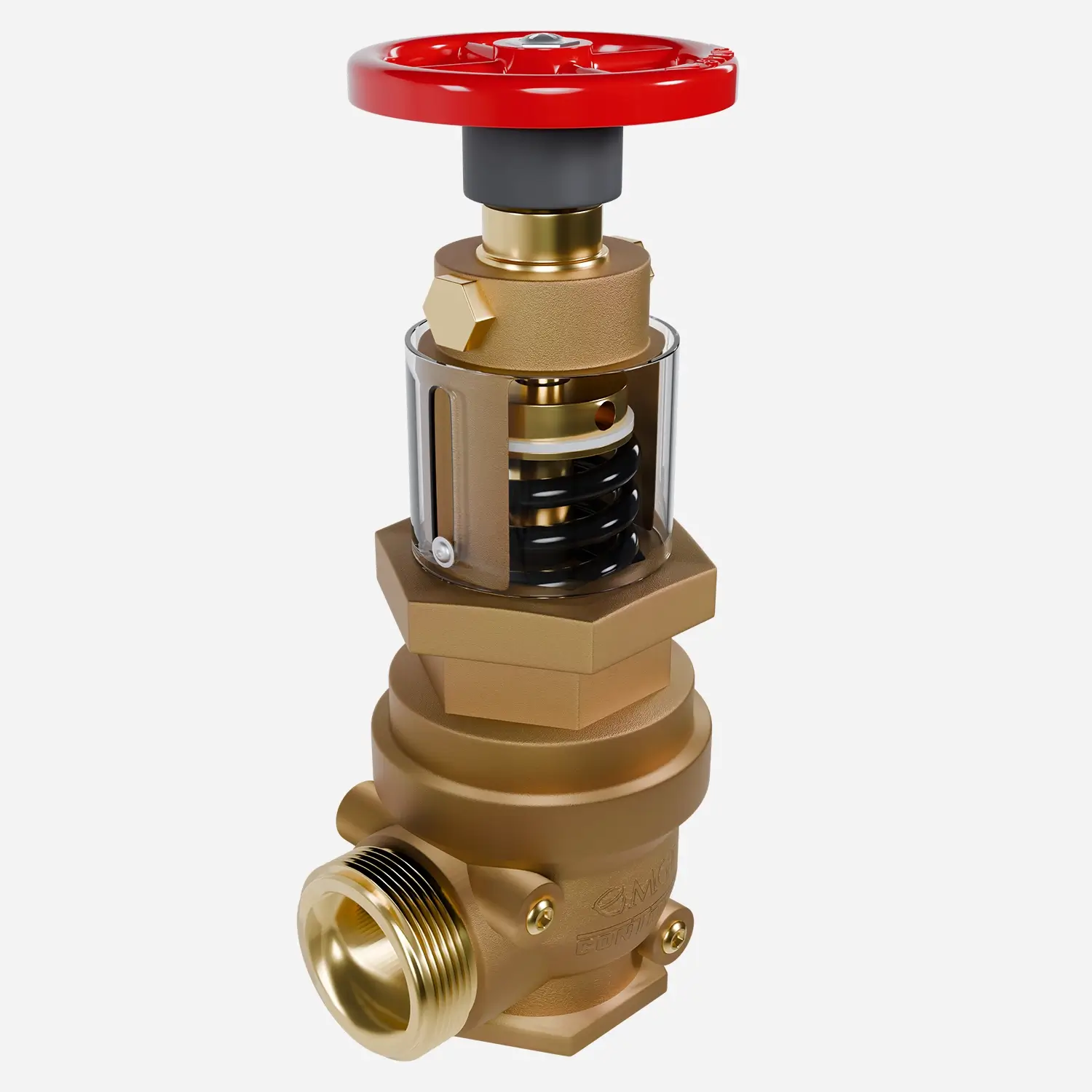

2-1/2" FIELD ADJUSTABLE PRESSURE REDUCING ANGLE HOSE VALVE
Model 5410
Model 5410
2-1/2" FIELD ADJUSTABLE PRESSURE REDUCING ANGLE HOSE VALVE
Automatically regulates pressure under flowing (residual) and non-flowing (static) conditions. Listed for use as a hose connection in Class I and Class III standpipe systems where inlet pressures require regulation.
Standard Features:
- Angle-type cast brass valve with red aluminum handle.
- Made/assembled in the USA or China
- Female NPT Inlet x Male NH/NST Outlet
- Low torque manual open/close handle
- Low torque field-adjustable pressure setting easily determined with color-coded indication label.
- Tamper- resistant protective shroud.
- 1/4" Ports (4) drilled, tapped, and plugged. Install pressure gauges to monitor upstream and
downstream pressures. - Visual Indicator for OPEN/CLOSED status.
- A setting rod is included with each valve.
- Size & weight permit installation in 1700 Series (18" x 18" x 8") Cabinet
Compliance
- UL®/ULC® Listed to 400 PSI for flow rates up to 500 GPM
- NYC MEA # 352-91-M
- City of Denver Approved
Available Model
5410
Refer to the catalog page and/or "Product Models" Section below for more information.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Pressure Regulating Valves - Field Adjustable, Angle Hose Valve [5410, 5420, 5427, 5428, 5430, 5437, 5438] | 0 | 656 KB | ||
| | Croker® MGI ConTrols® Pressure Reducing Valves [5410, 5000-ACV Series, 5035, 5410, 5420-5428, 5430-5438, 5450, 5455, 5470, 5475, 5480, 5490] Document# L1001693 | 0 | 1 MB |
Models
5410 | 2-1/2" Female NPT Inlet x Male NH/NST Outlet
Optional
Grooved inlet with adapter
Special hose threads on male outlet (customer to specify)
Option Finishes
PB | Polished Brass
RC | Rough Chrome Plated
PC | Polished Chrome Plated
