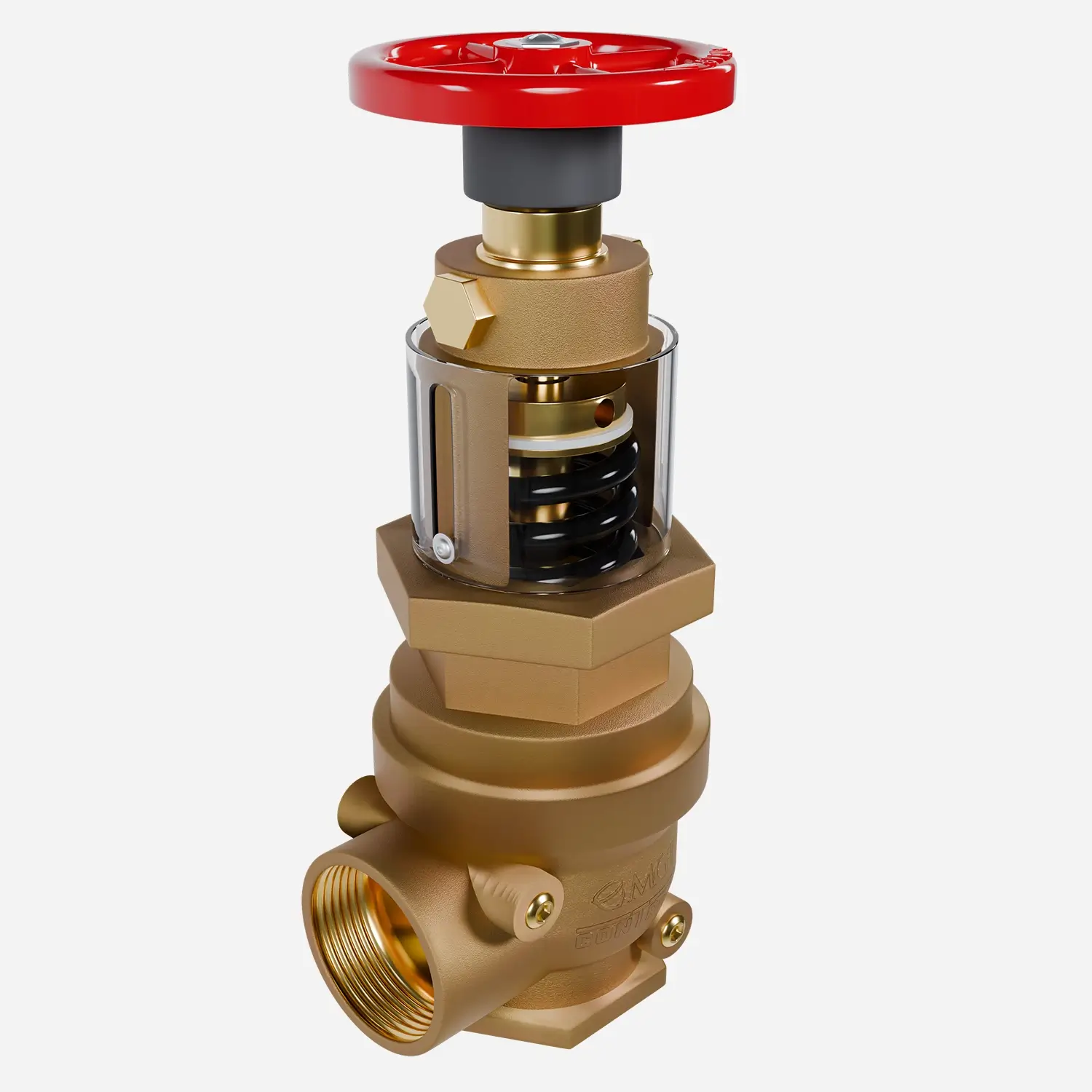

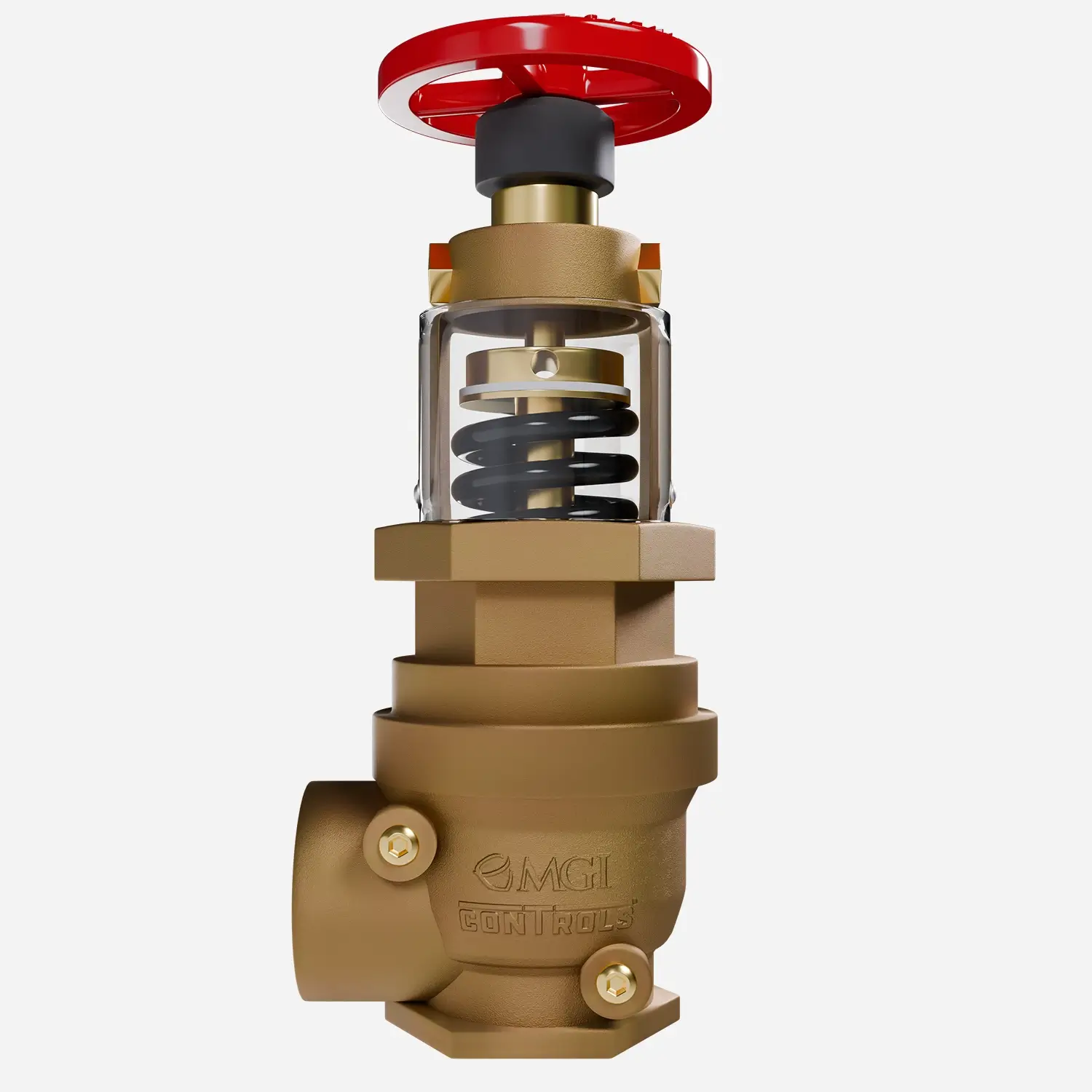

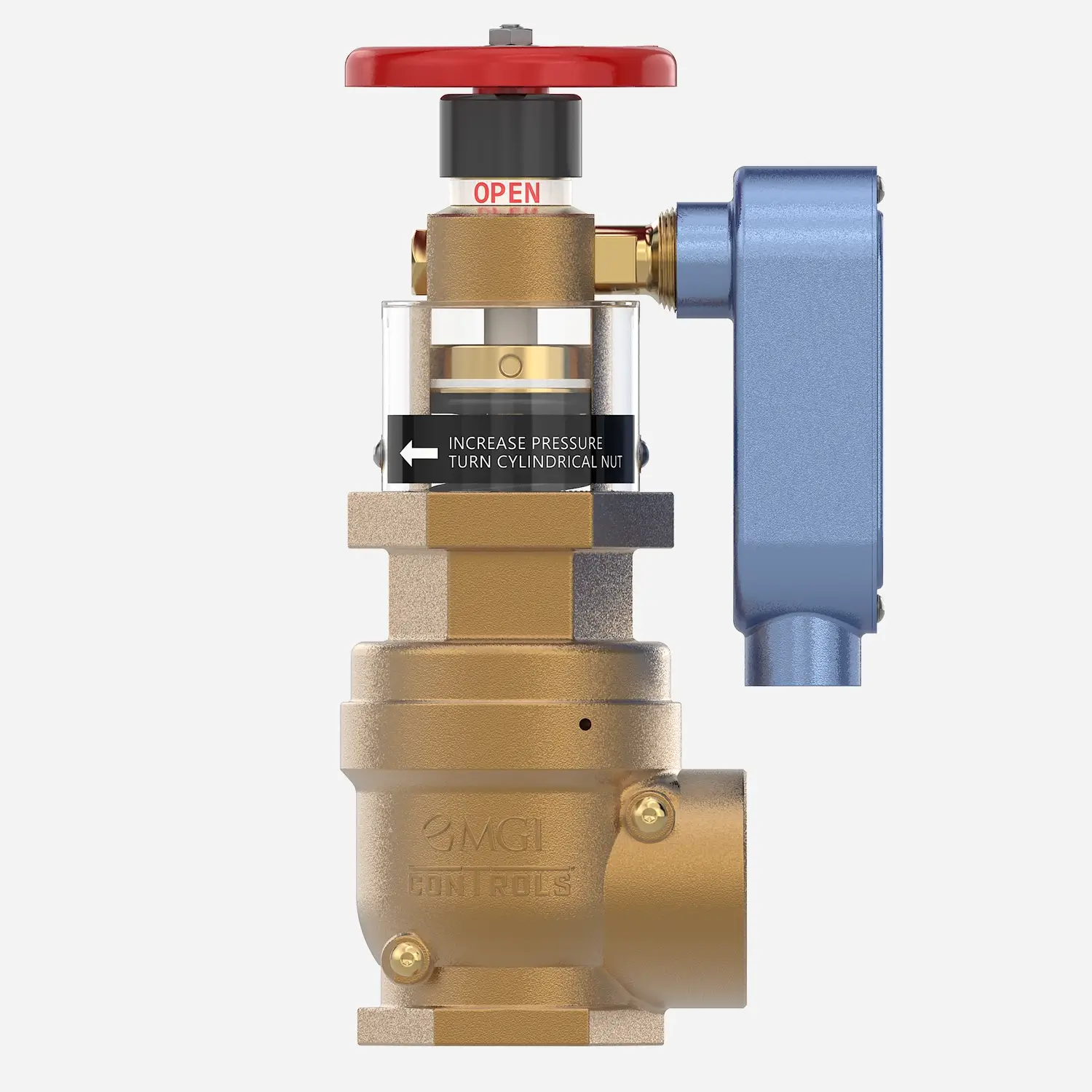

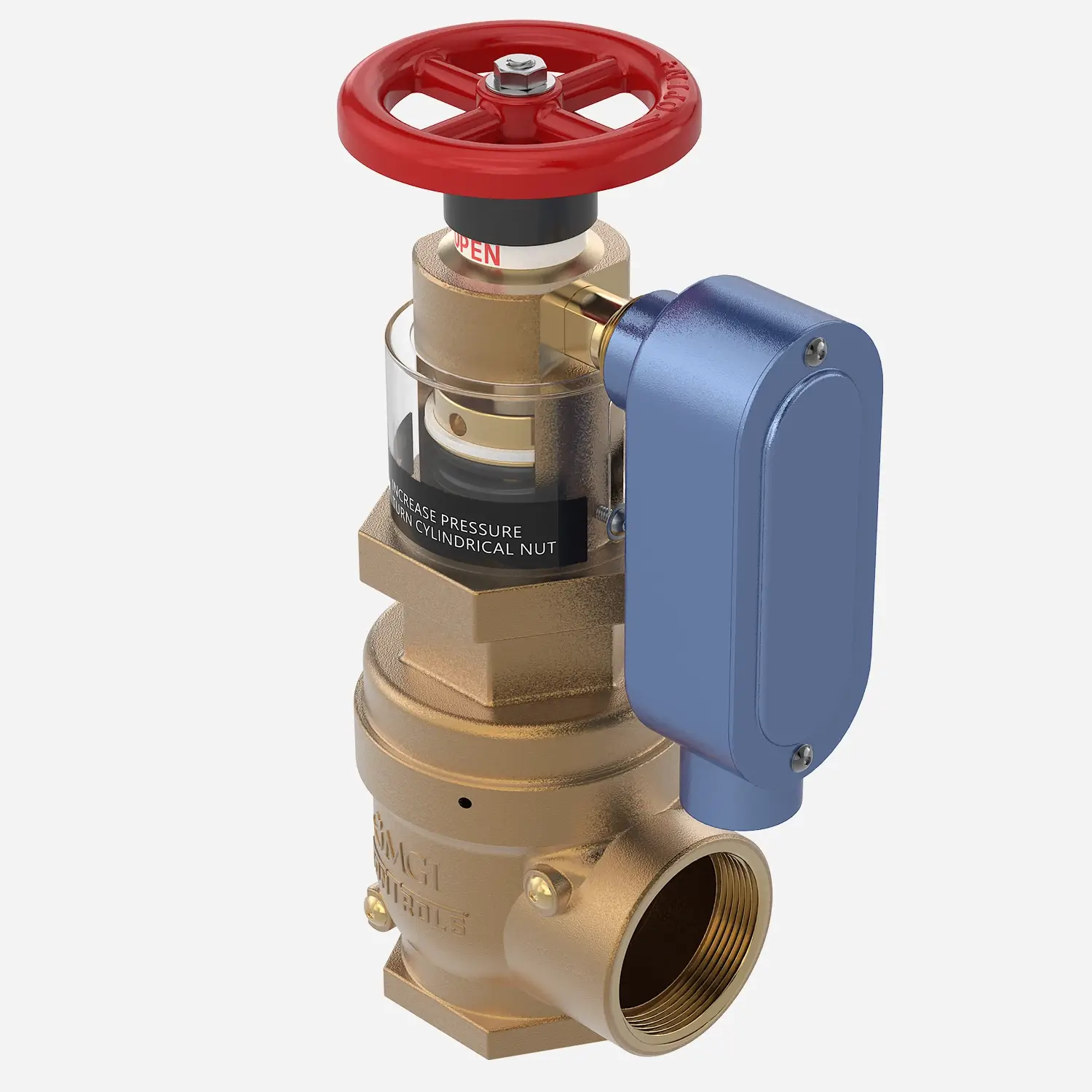

2-1/2" FIELD ADJUSTABLE PRESSURE REDUCING ANGLE HOSE RACK AND CONTROL VALVE

Automatically regulates pressure under flowing (residual) and non-flowing (static) conditions.
Listed for use as a floor control valve, an indicating valve, and a check valve in an automatic sprinkler system, as well as for use in Class I and Class III standpipe systems, where inlet pressures require
regulation.

Standard Features:

• Angle type cast brass valve with red aluminum handle.
• Made/assembled in the USA or China.
• Female NPT Inlet x Female NPT Outlet; Grooved Inlet x Grooved Outlet
• Low-torque manual open/close handle
• Low-torque field-adjustable pressure setting is easily determined with a color-coded indication label.
• Tamper-resistant protective shroud.
• 1/4" Ports (4) drilled, tapped, and plugged. Install pressure gauges to monitor upstream and
  downstream pressures.
• Visual Indicator for OPEN/CLOSED status
• A setting rod is included with each valve
• Size & weight permit installation in tighter areas and smaller hose cabinets.

Compliance

• UL®/ULC® Listed to 400 PSI for flow rates up to 500 GPM
• NYC MEA # 352-91-M.
• City of Denver Approved.

Available Models:

5420, 5427, 5428
Refer to the catalog page and/or "Product Models" Section below for more information.
