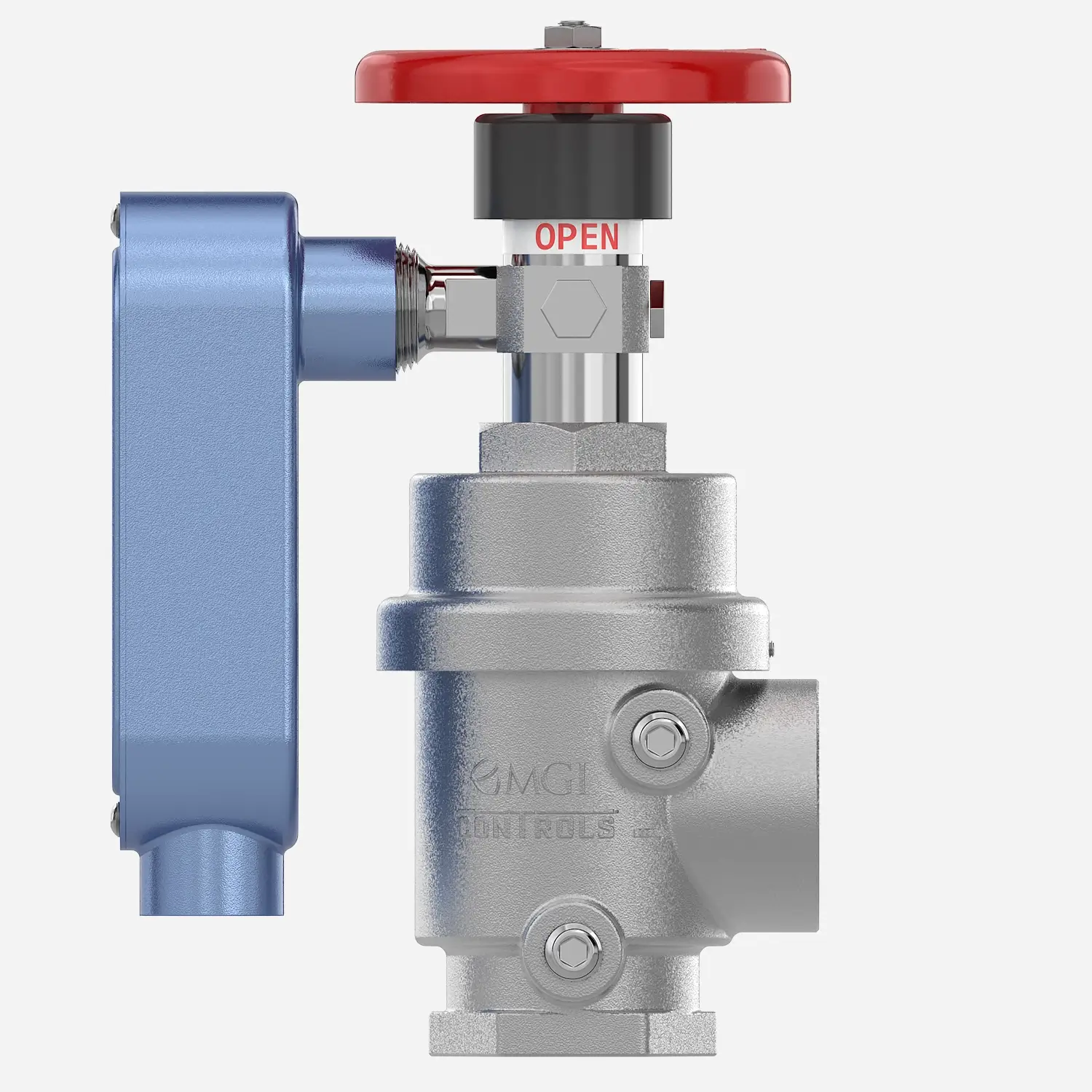

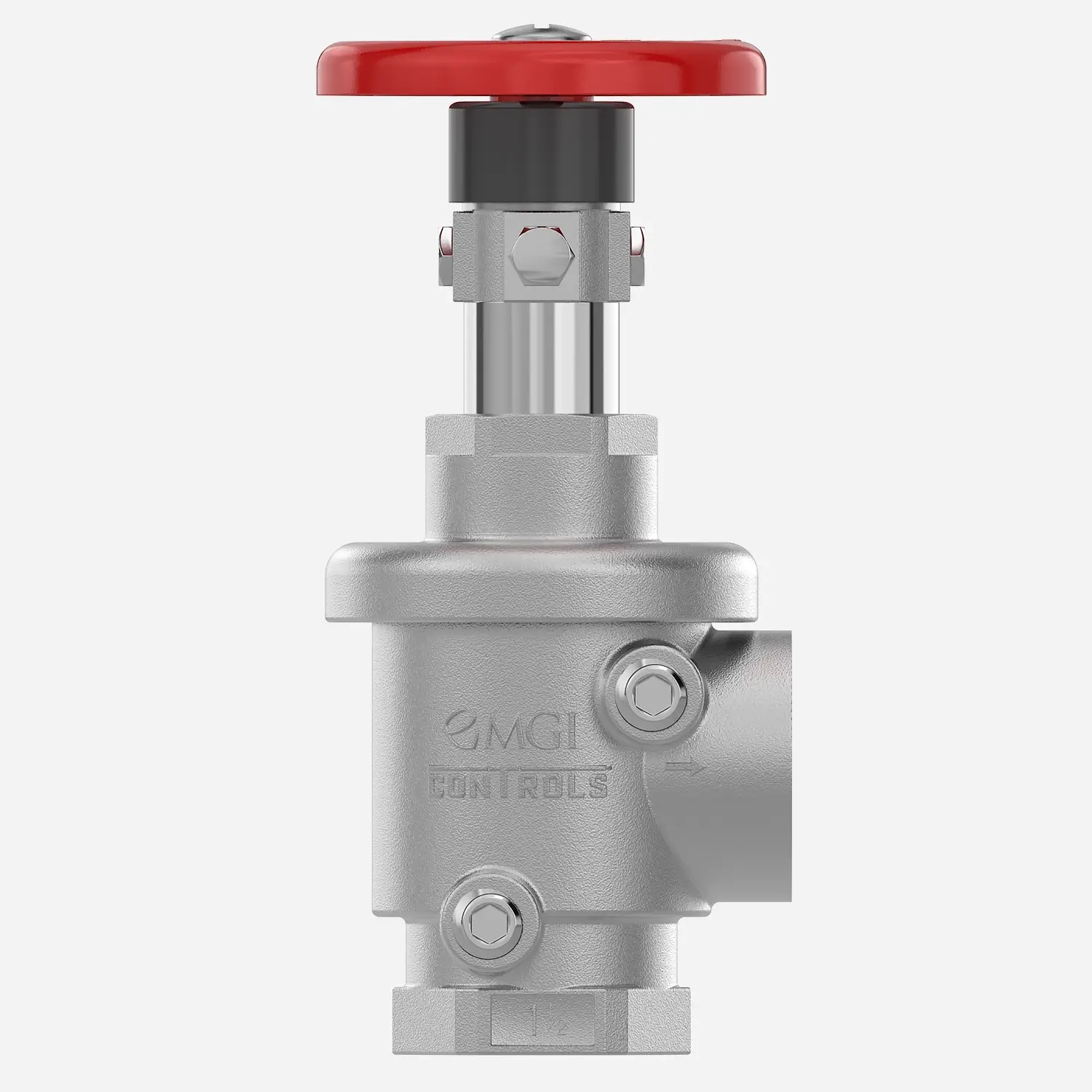

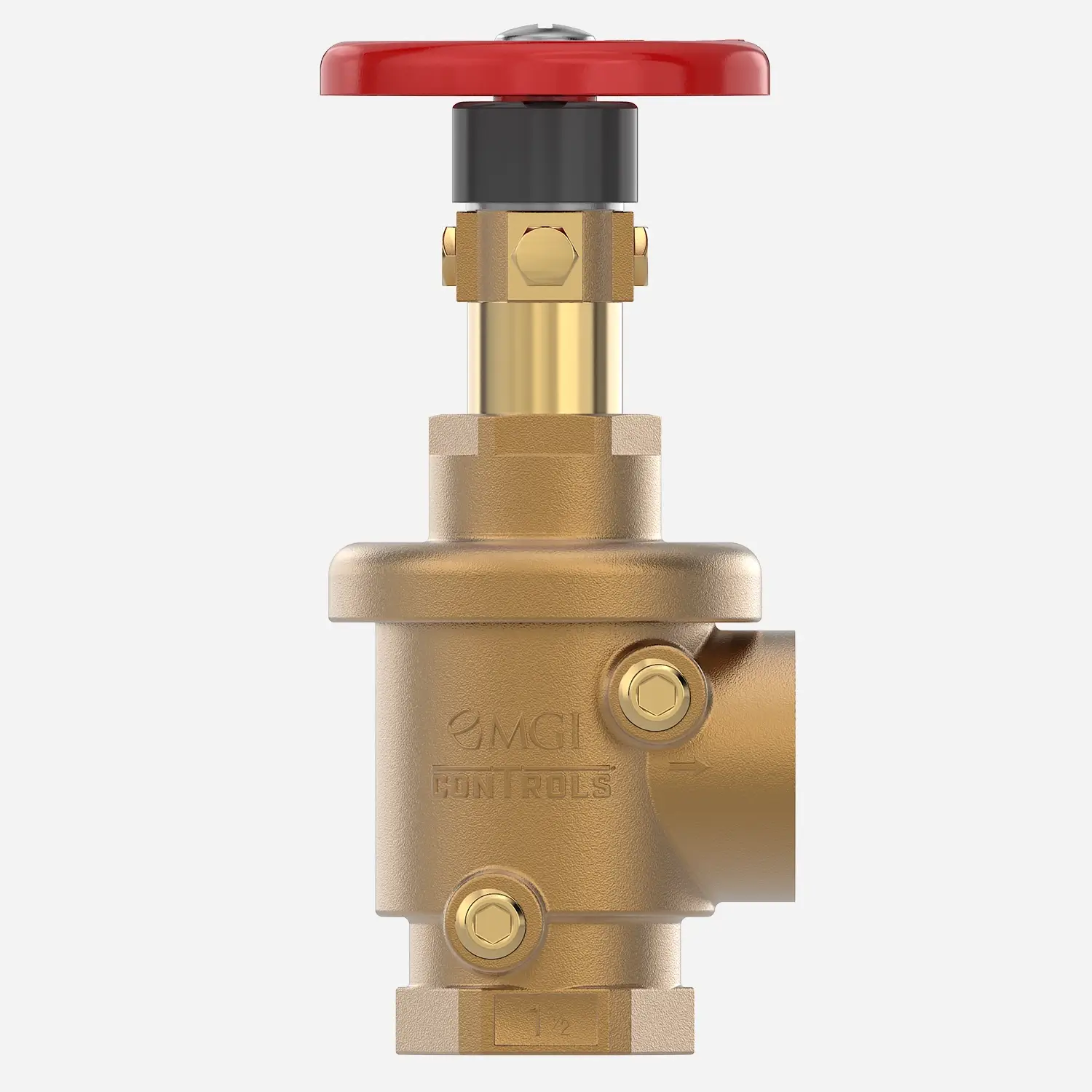

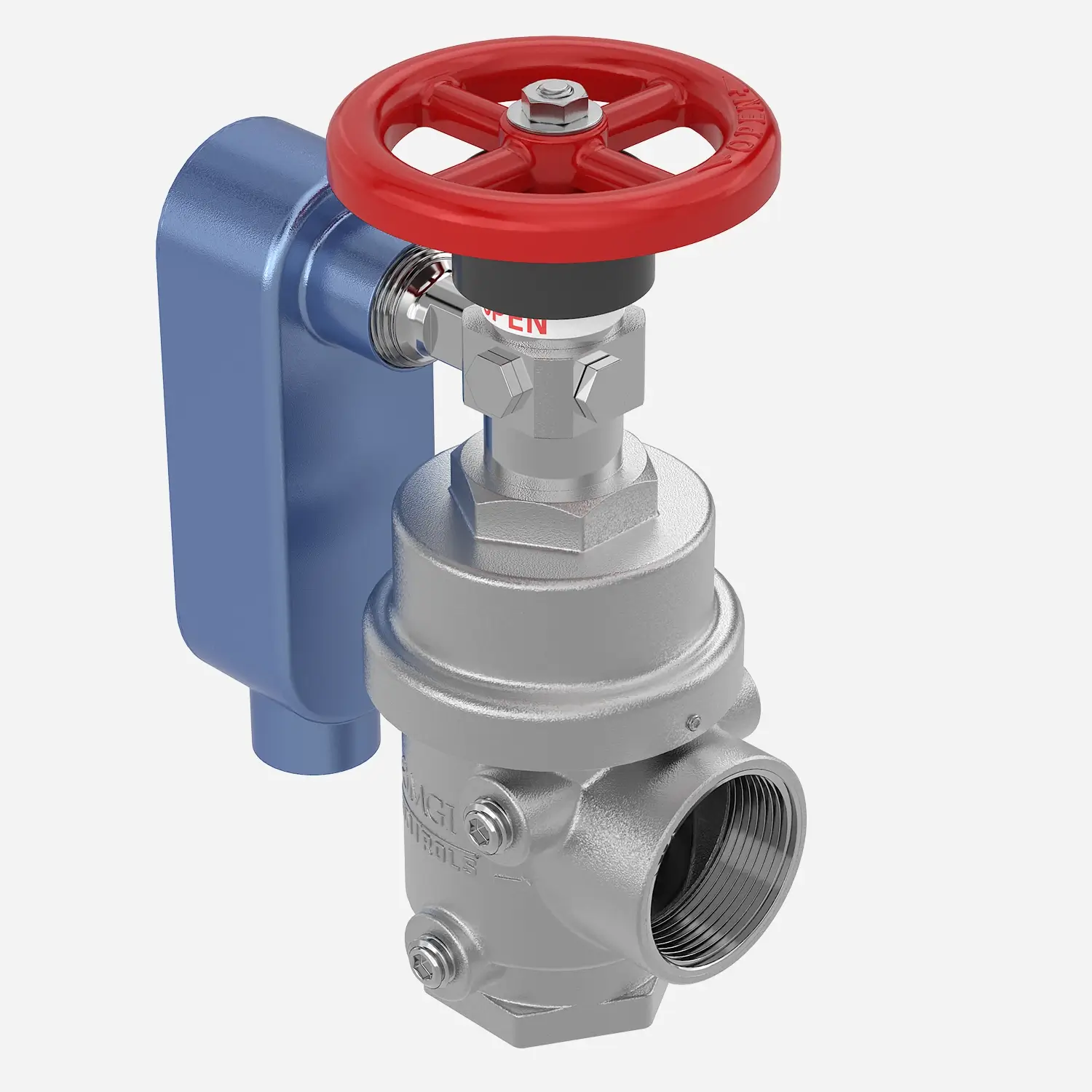

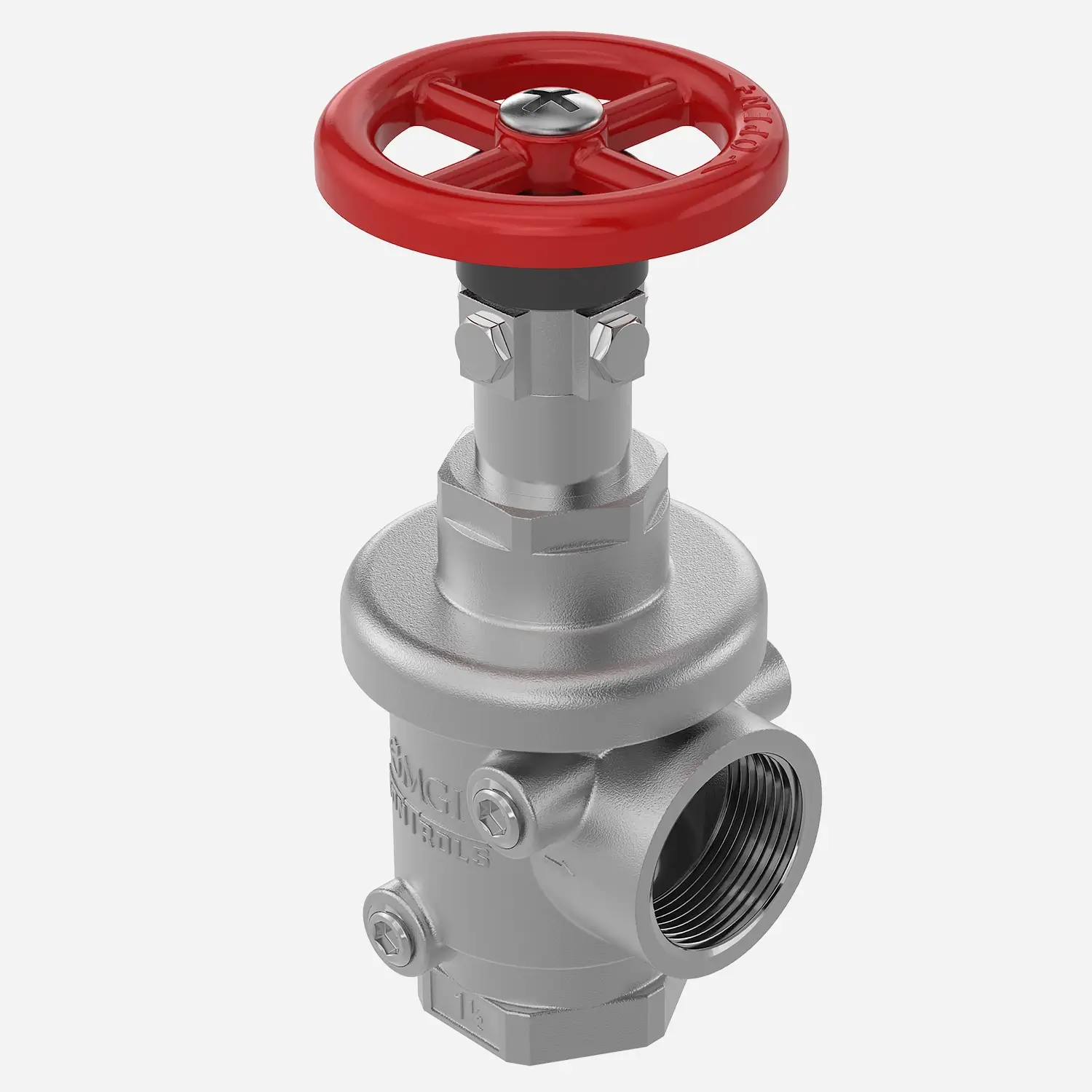

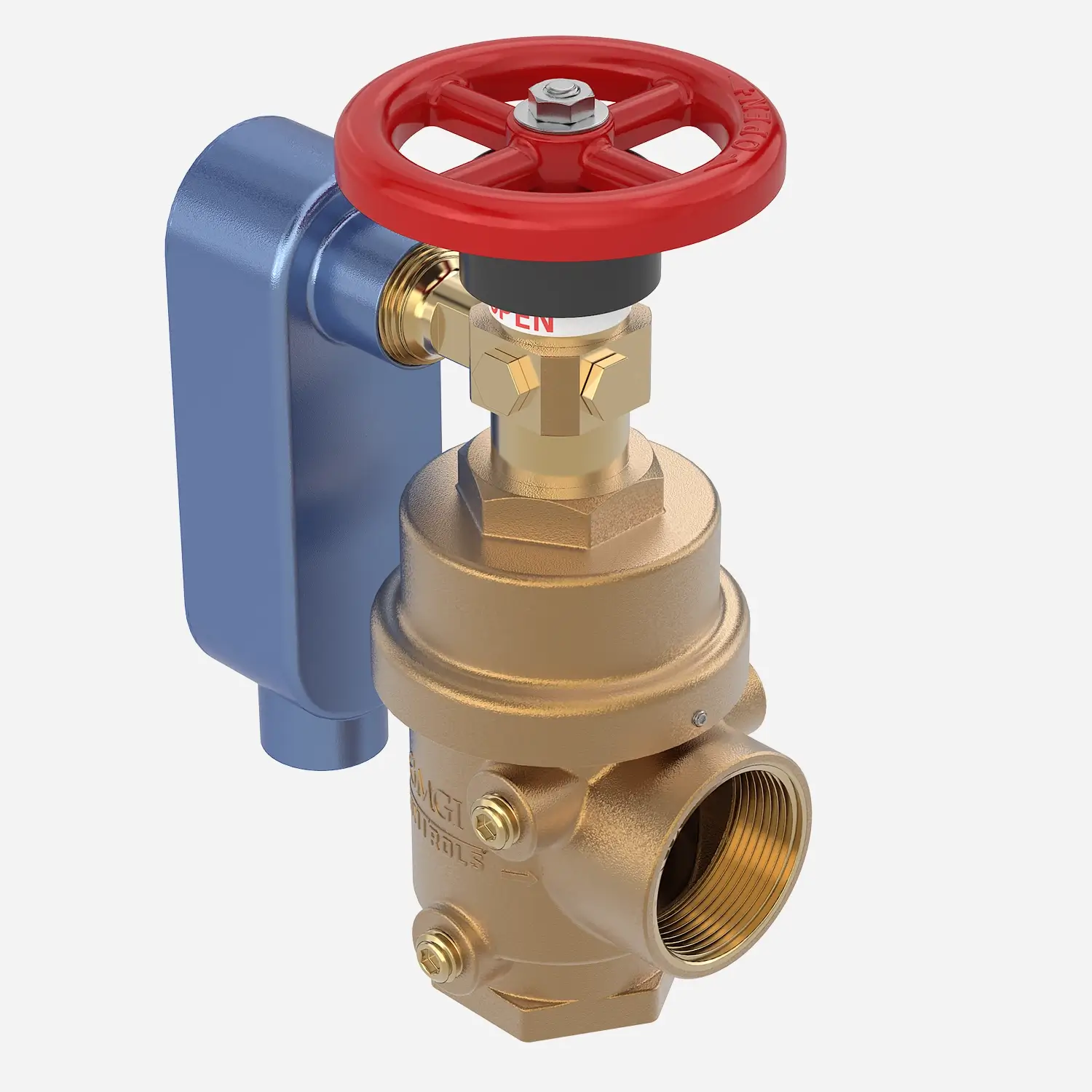

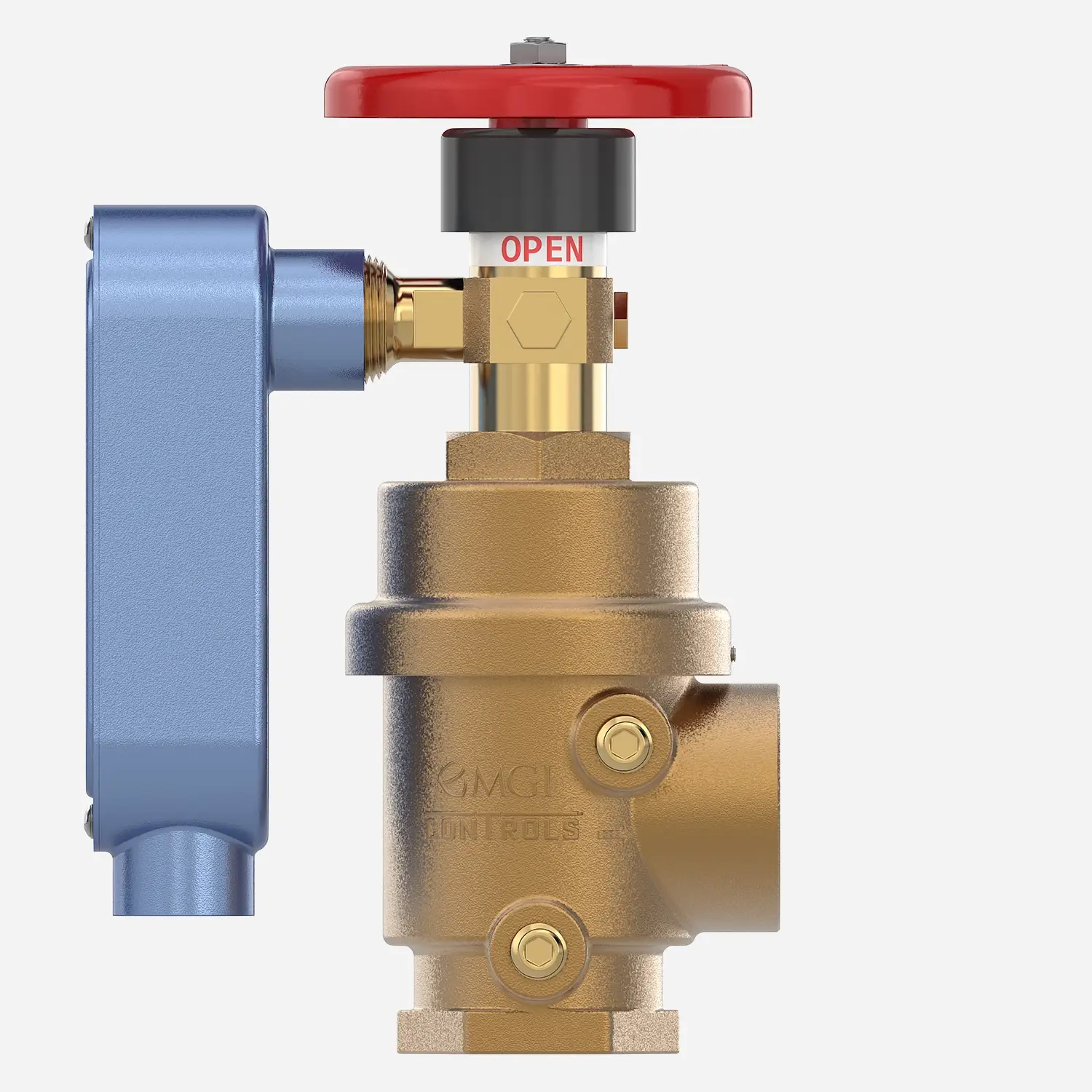

1-1/2" NON-ADJUSTABLE PRESSURE REDUCING ANGLE HOSE RACK AND CONTROL VALVES

Automatically regulates pressure under flowing (residual) and non-flowing (static) conditions. Listed for use as a floor control valve, and a check valve in automatic sprinkler systems, as well as a standpipe valve for Class I, II, and III systems, where the inlet pressures require regulation.

Standard Features

• Angle-type cast brass valve with aluminum handle
• Made in the USA
• Female NPT Inlet x Female NPT Outlet
• Tamper-proof pressure setting. Pressure settings are factory set and non-adjustable. Flow rate (GPM), static/residual inlet pressures (PSI), and desired static/residual outlet pressures (PSI) are required.

Compliances

• 1-1/2" Valves are UL®/ULC® Listed to 300 PSI for flow rates up to 250 GPM
• NYC MEA #388-75-SA

Available Models

5450, 5455
Refer to the catalog page and/or "Product Models" Section below for more information.
