NON-ADJUSTABLE PRESSURE REDUCING ANGLE HOSE VALVES
Model 5460, 5480
Model 5460, 5480
NON-ADJUSTABLE PRESSURE REDUCING ANGLE HOSE VALVES
Automatically regulates pressure under flowing (residual) and non-flowing (static) conditions.
Listed for use as a hose connection in Class I, II, and III standpipe systems where inlet pressures
require regulation.
Standard Features
- Angle-type cast brass valve with aluminum handle.
- Made in the USA
- Female NPT Inlet x Male NH/NST Outlet
- Tamper-proof pressure setting. Pressure settings are factory set and non-adjustable. Flow rate
(GPM), static/residual inlet pressures (PSI), and desired static/residual outlet pressures (PSI) are
required.
Compliance
- 5460 Valves are UL®/ULC® Listed to 300 PSI for flow rates up to 250 GPM
- 5480 Valves are UL®/ULC® Listed to 400 PSI for flow rates up to 500 GPM
- NYC MEA #388-75-SA.
Available Models:
5460, 5480
Refer to the catalog page and/or "Product Models" Section below for more information.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Pressure Regulating Valves - Field Adjustable, Angle Hose Valve [5460, 5480, 5450, 5455, 5470, 5475, 5477, 5490, 5495, 5497] | 0 | 909 KB | ||
| | Croker® MGI ConTrols® Pressure Reducing Valves [5410, 5000-ACV Series, 5035, 5410, 5420-5428, 5430-5438, 5450, 5455, 5470, 5475, 5480, 5490] Document# L1001693 | 0 | 1 MB |
Models

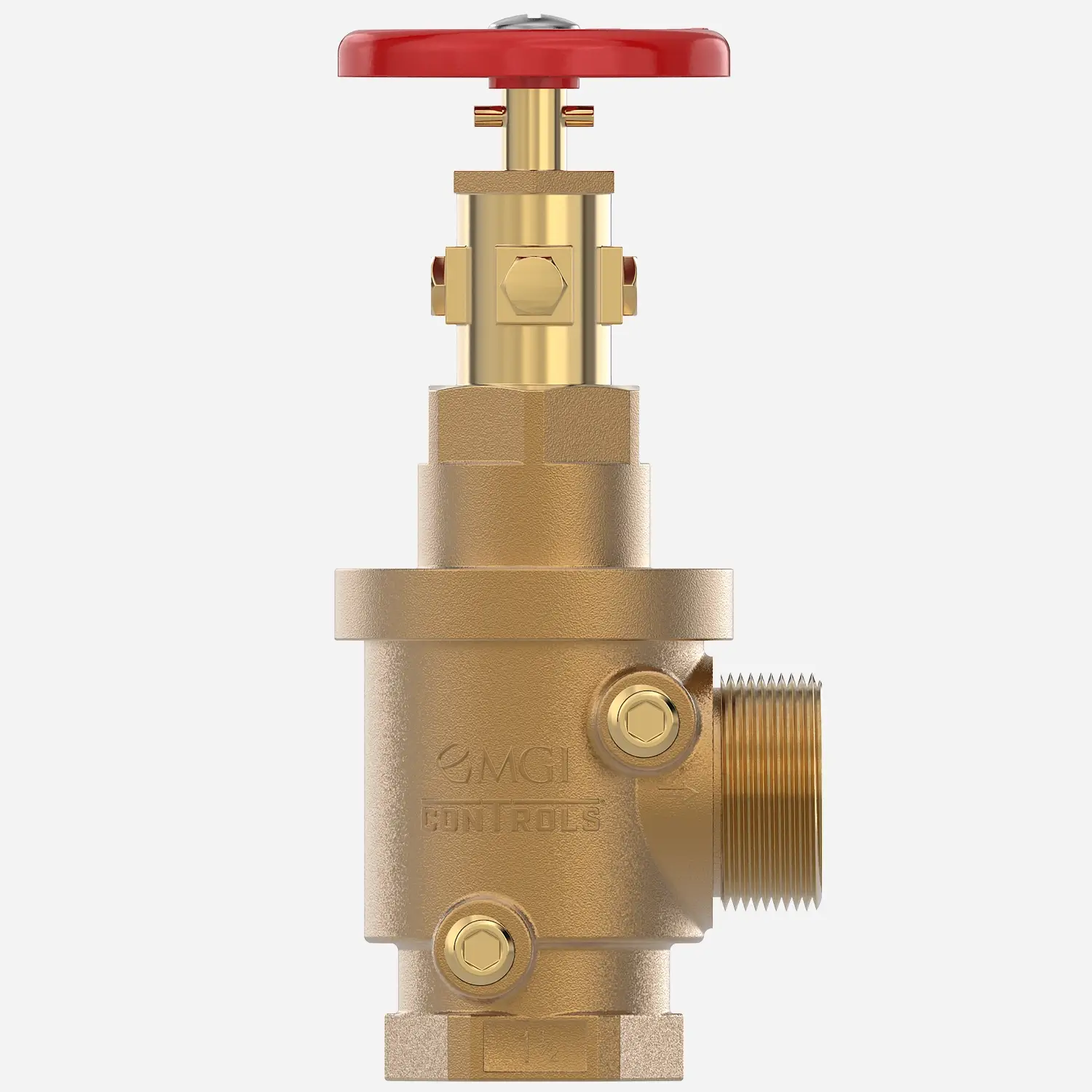

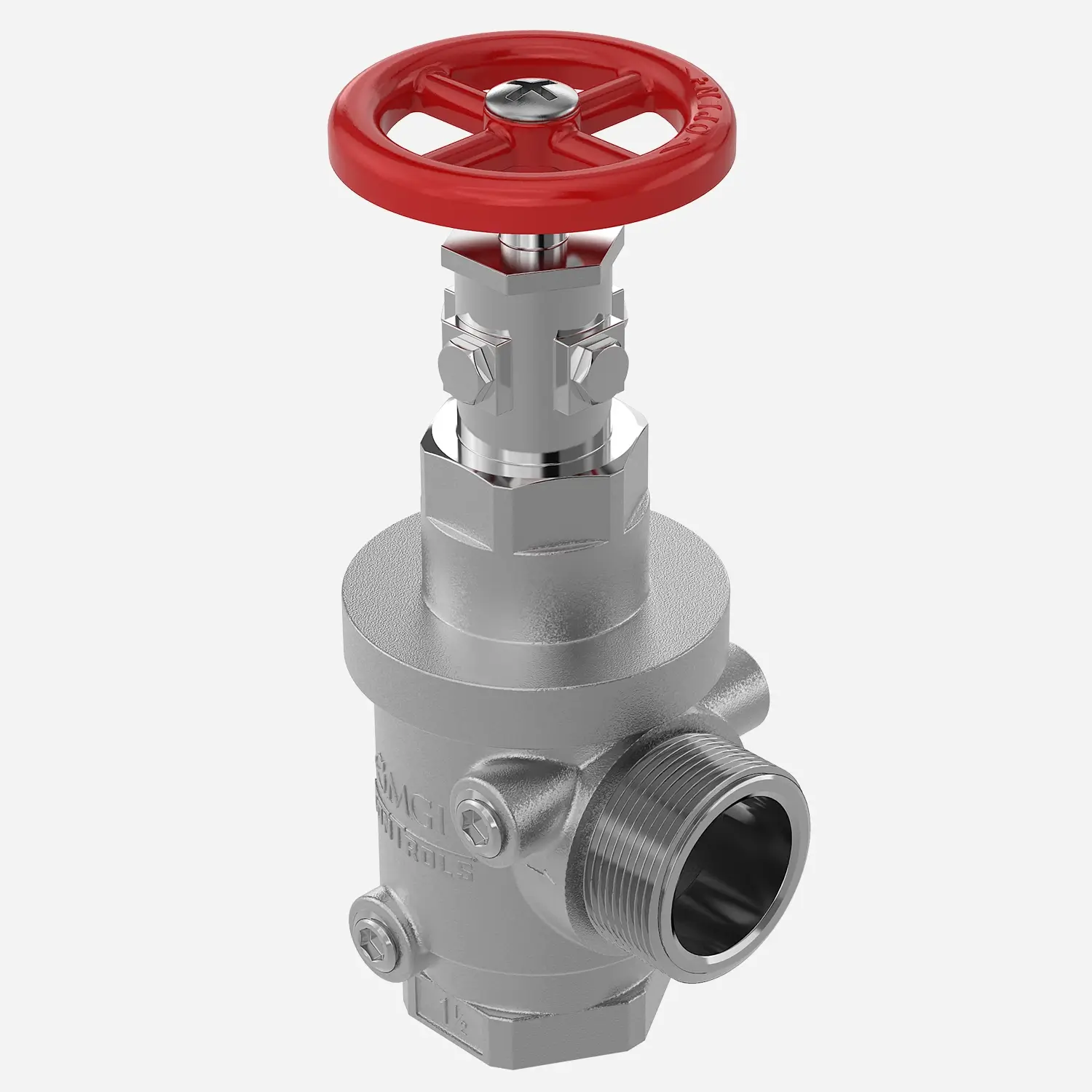

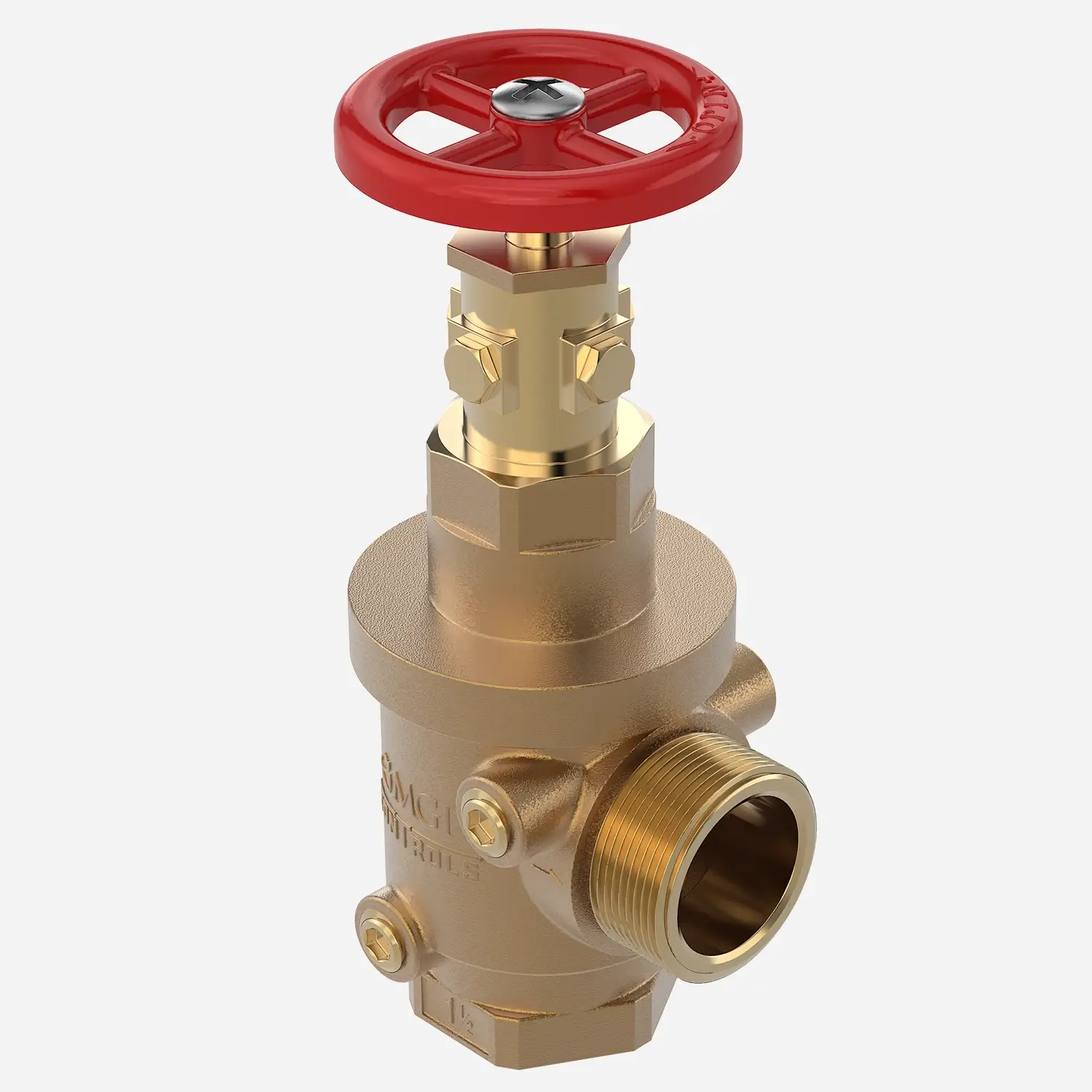

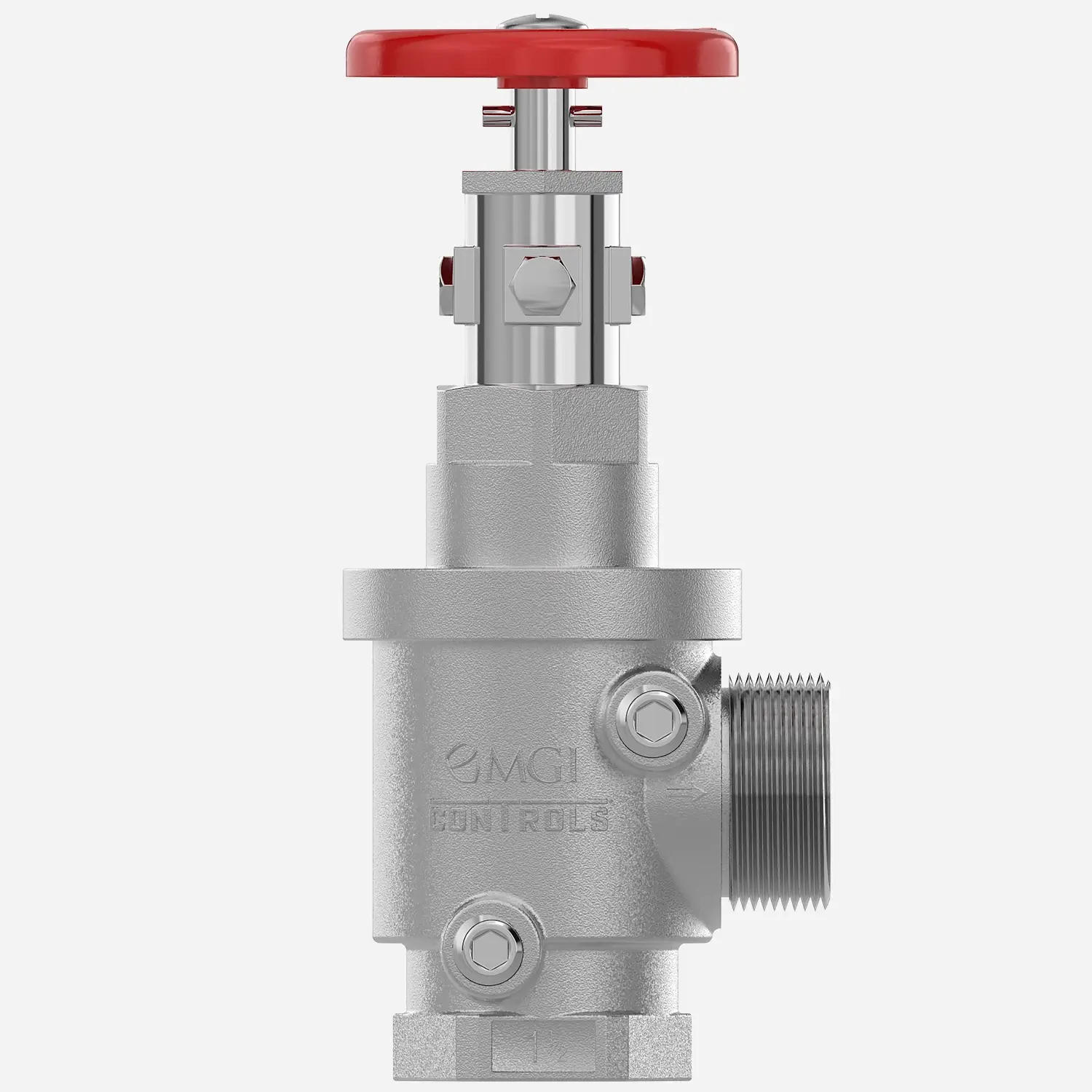

5460 | 1-1/2" Female NPT Inlet x 1-1/2" Male NH/NST Outlet

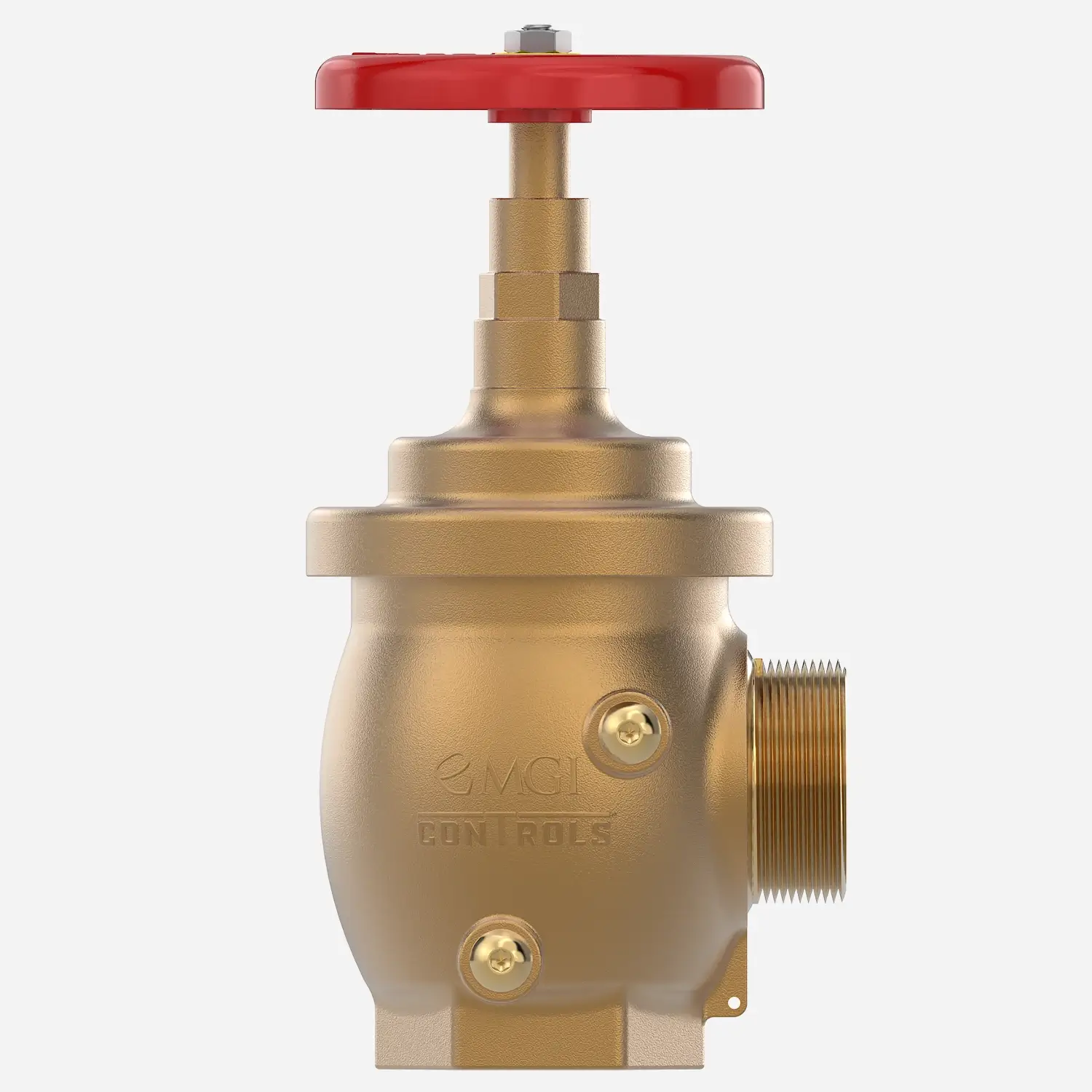

5480 | 2-1/2" Female NPT Inlet x 2-1/2" Male NH/NST Outlet
Optional
Grooved Inlet adapter
Special hose threads on male outlet (Customer to specify).
Supervisory switch bracket (5500SB)
Supervisory switch (8152) for remote monitoring.
Option Finishes
PB | Polished Brass
RC | Rough Chrome Plated
PC | Polished Chrome Plated
