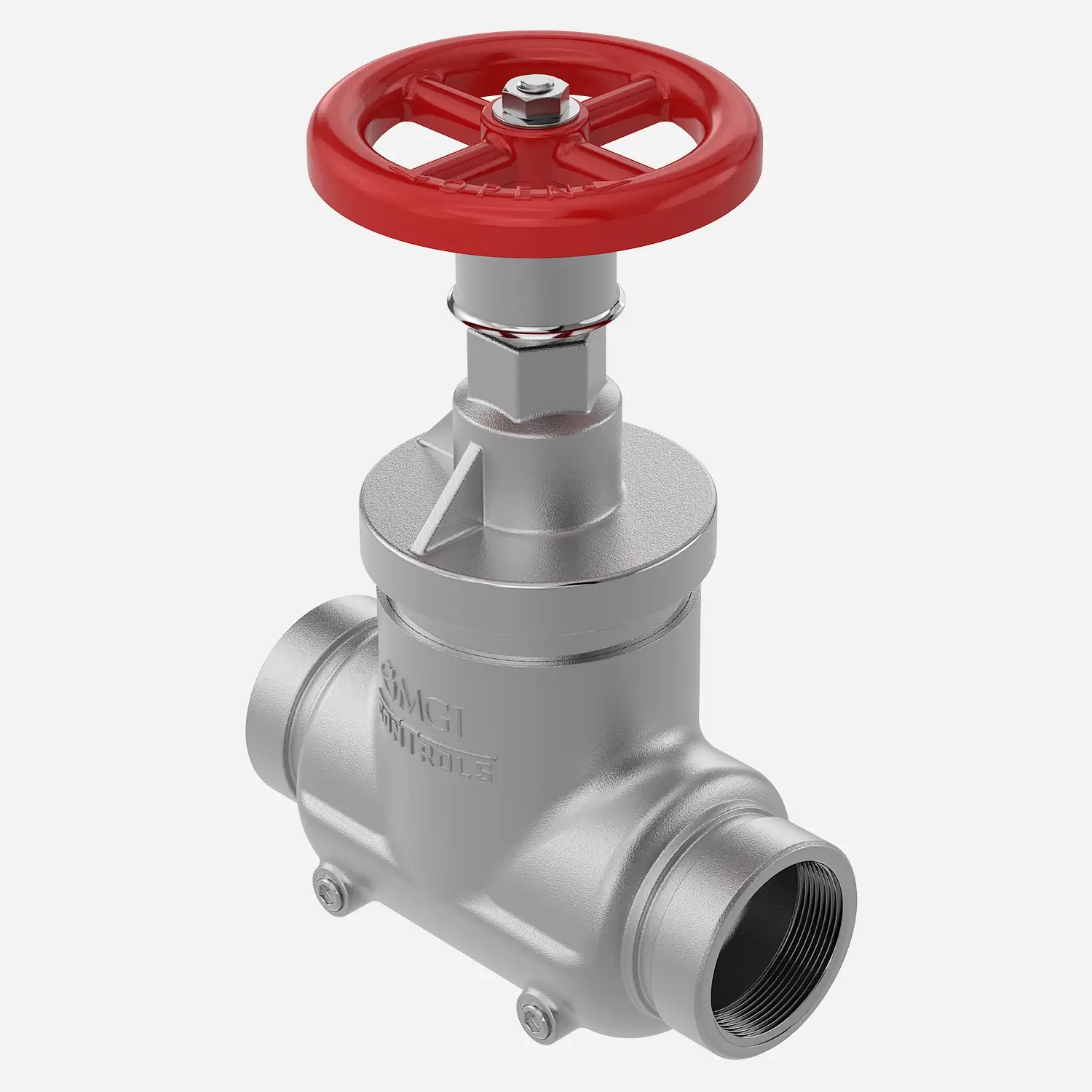

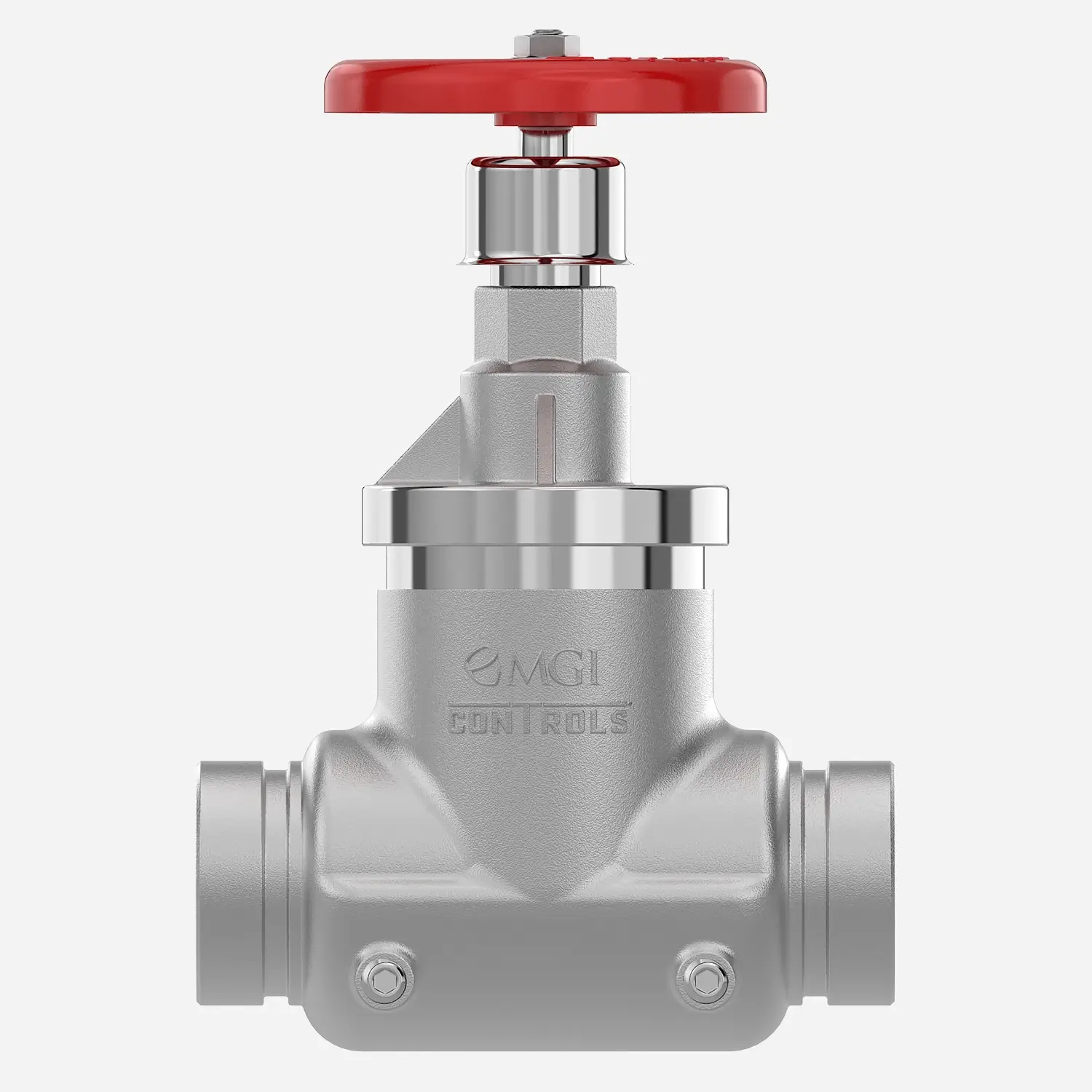

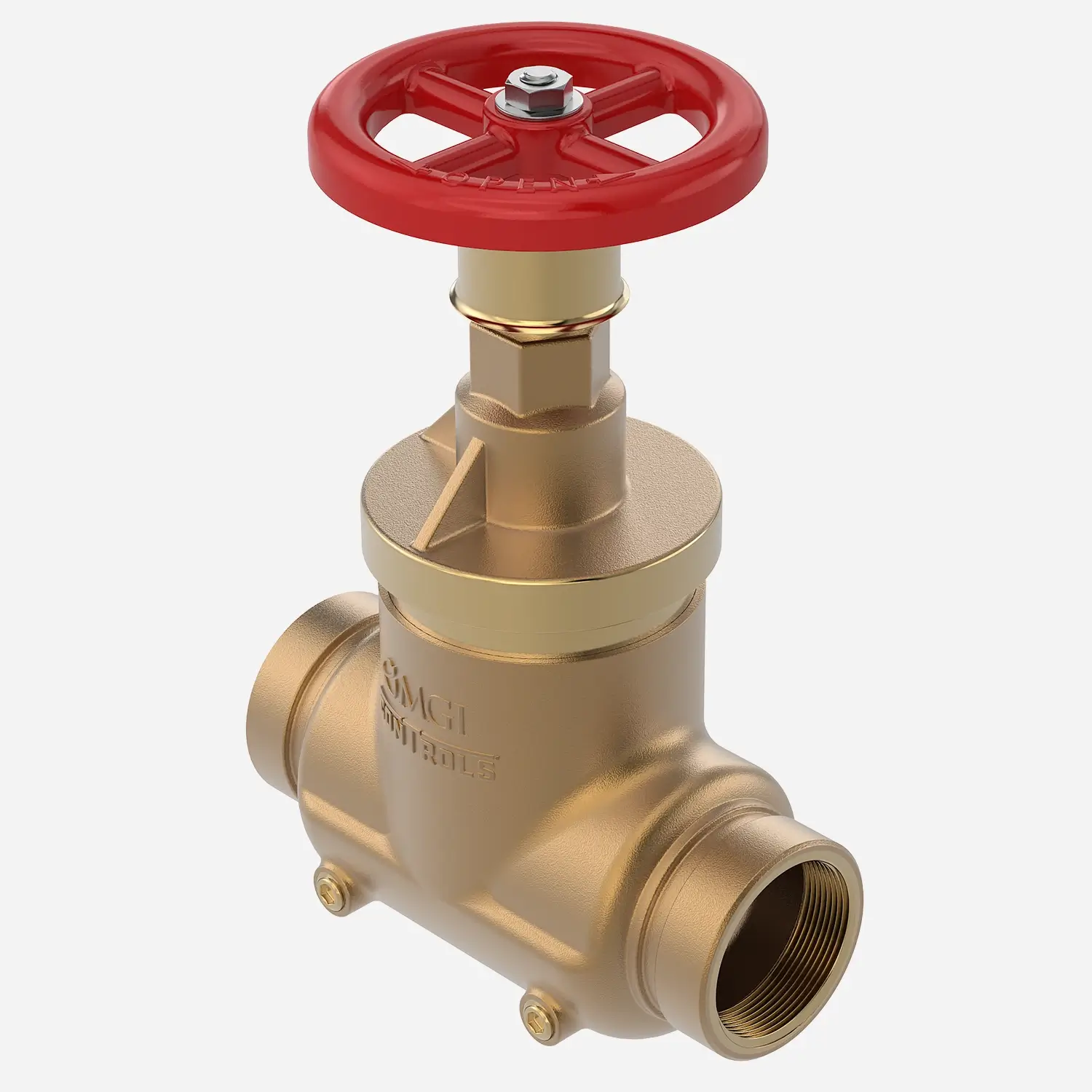

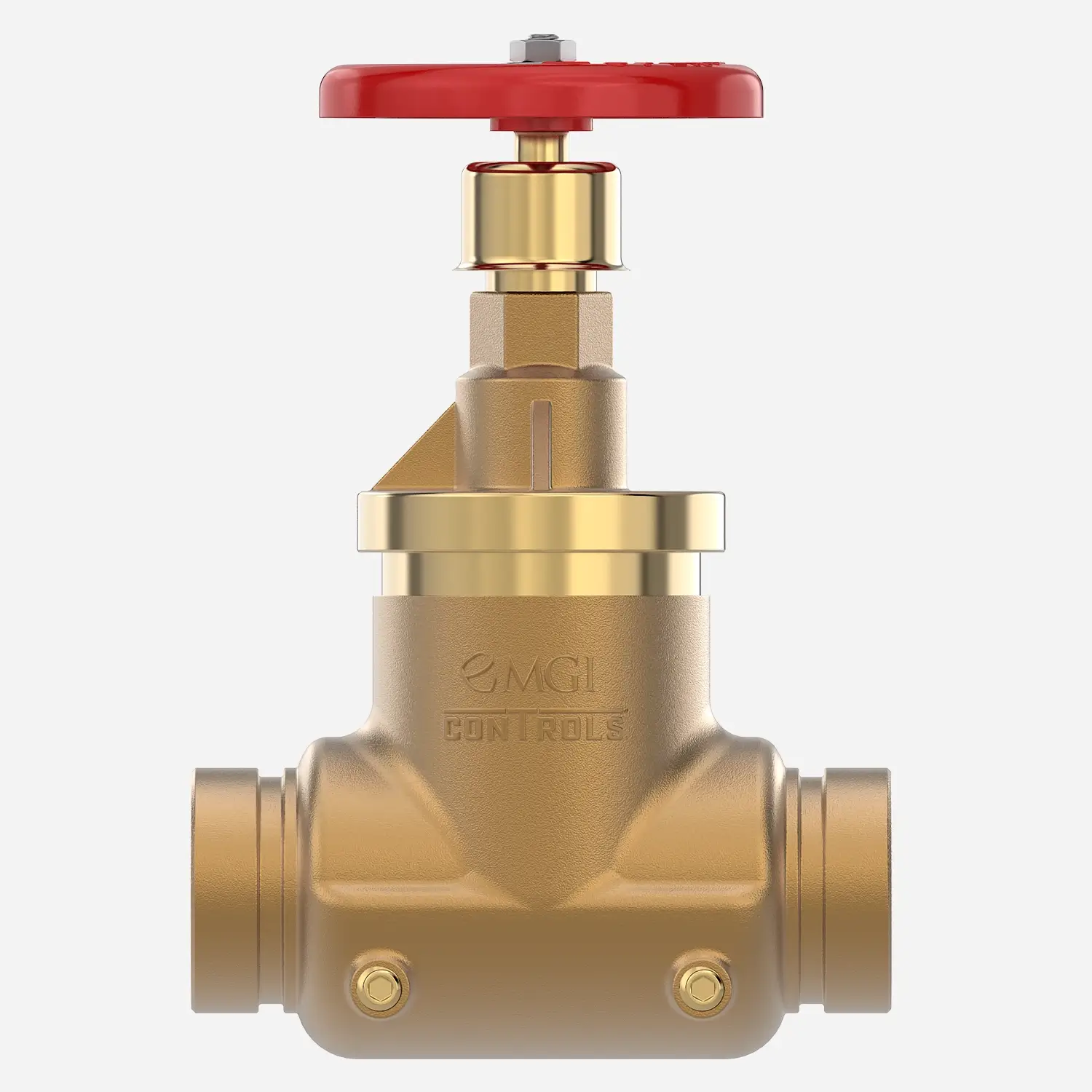

NON-ADJUSTABLE PRESSURE REDUCING IN-LINE CONTROL VALVE

Automatically regulates pressure under flowing (residual) and non-flowing (static) conditions.
Listed for use as a floor control valve, an indicating valve, and a check valve in an automatic sprinkler system as well as a standpipe valve for Class I and Class III systems, where inlet pressures require regulation.

Standard Features:

• In-line (straight) type cast brass valve with aluminum handle
• Made in the USA
• Female NPT Inlet x Female NPT Outlet
• Tamper-proof pressure setting. Pressure settings are factory set and non-adjustable. Flow rate (GPM), static/residual inlet pressures (PSI), and desired static/residual outlet pressures (PSI) are required
• Visual Indicator for OPEN/CLOSED status.

Compliance

• UL®/ULC® Listed to 400 PSI for flow rates up to 400 GPM
• NYC MEA #388-75-SA.

Available Models:

5490, 5495, 5497
Refer to the catalog page and/or "Product Models" Section below for more information.
